Home > Press Brake Clamping > Model 4

CS.7184

Name: CS.7184
Brand: FABMAX
Price: 120.00 $
Availability: InStock
Rating: 5 (1 reviews)

$120.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
Boosting Press Brake Efficiency

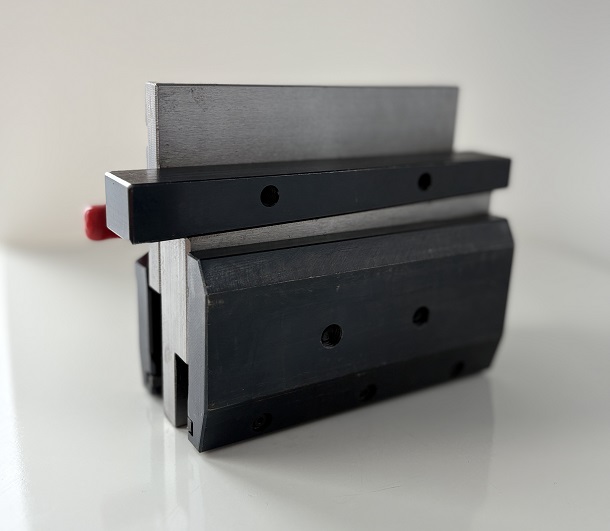

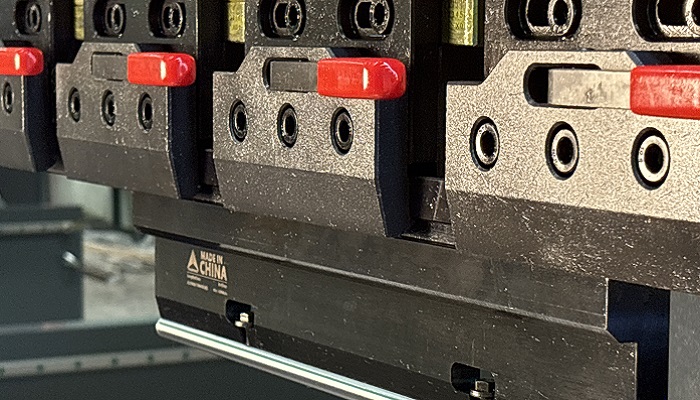

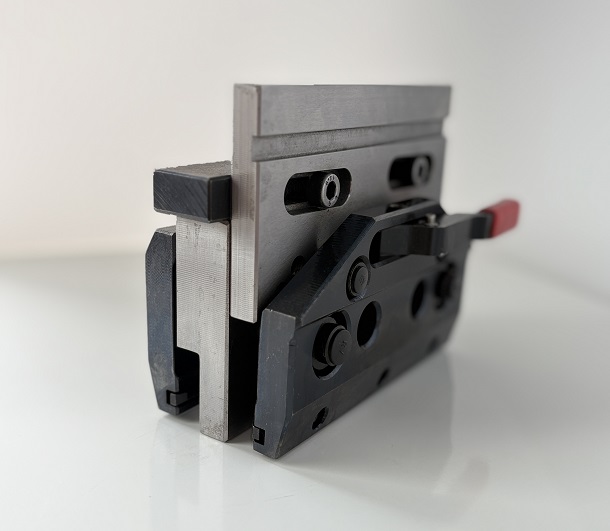

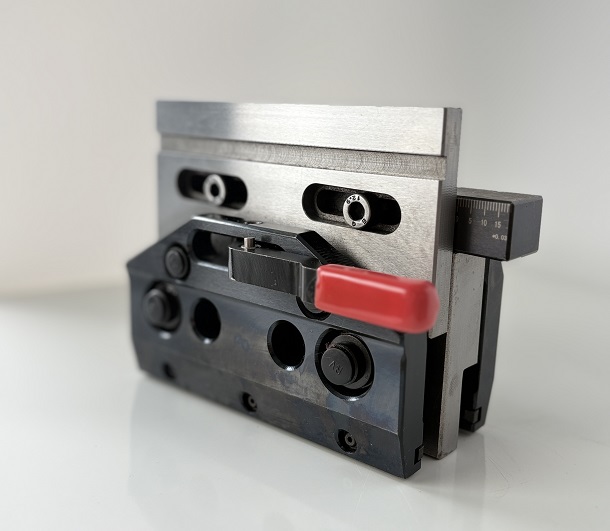

This innovative Double-Sided Quick Clamp System is engineered to drastically cut down the time spent on tool changeovers and setup on CNC press brakes. Unlike traditional clamping methods that require lengthy manual adjustments, this system allows operators to load and secure both punch (upper tool) and die (lower tool) simultaneously from either side of the beam. This time-saving feature is crucial for fabricators handling short-run production or complex bending sequences that demand frequent tooling swaps. By transforming minutes of setup into mere seconds, the clamp significantly boosts overall machine utilization and production throughput, providing a substantial competitive edge in high-mix, low-volume manufacturing.

Safety and Precision Guaranteed

Our dual-action quick clamp ensures unparalleled tool security by providing uniform and powerful locking force across the entire length of the die rail. This robust, symmetrical clamping mechanism eliminates any potential for tool shifting or movement, which is often a cause of inconsistent bend angles and dimensional errors. The secure hold is vital when utilizing segmented tooling or heavy gooseneck punches under maximum tonnage. Furthermore, the system incorporates a safety lock feature preventing accidental tool drops during loading or under load. This enhanced stability is fundamental for achieving the high standards of bending precision required for critical aerospace or medical parts.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%
