Home > Press Brake Forming > U-Style Tool
FMU.201 FMU.201 FMU.201

FMU.201

$0.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  • Why Choose U-Style Bending Tools?

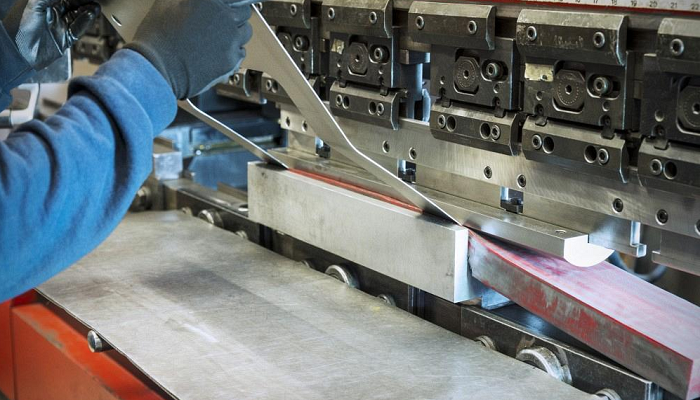

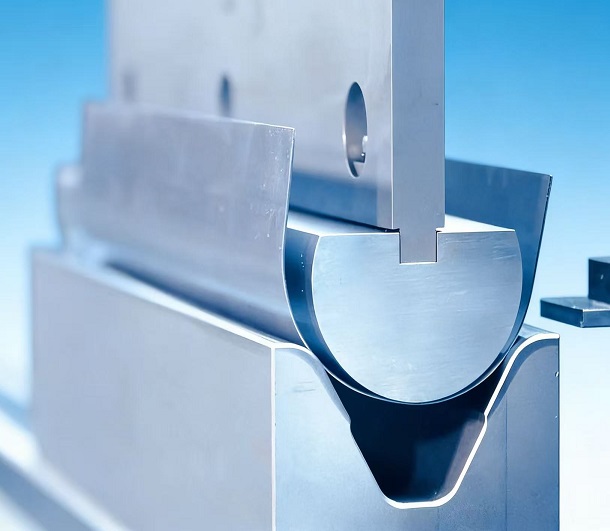

    U-Style tools are indispensable for forming deep channels, box sections, and U-shaped profiles that have parallel sides and requires a sharp or controlled bottom radius. Unlike standard V-dies, the U-die's specialized geometry provides the necessary deep recess to accommodate the finished part's vertical walls. This tool is chosen when the depth of the bend exceeds the width of the V-opening or when the inside walls must be perfectly vertical and parallel, ensuring high dimensional accuracy for components like frames, brackets, and structural channels.
    Remote Support
    Optimal Usage and Selection of U-Dies

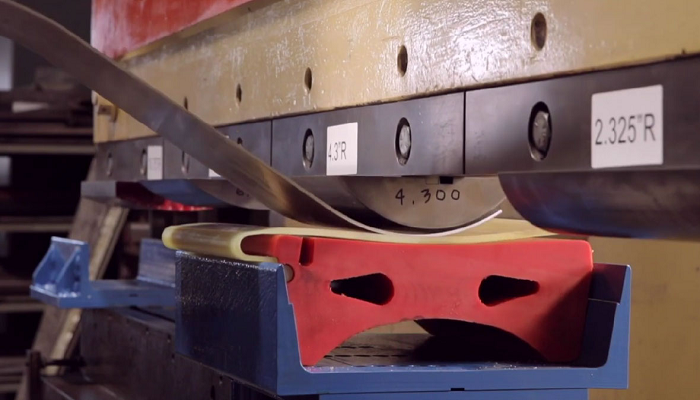

    Selecting the correct U-die involves matching the internal width of the die to the required internal width of your finished U-channel, with careful consideration of material thickness. The U-punch radius must match the required internal radius of the part. Proper use requires setting the press brake down-stroke for bottoming or coining to overcome springback and ensure the parallel walls are fully set. Always verify the maximum bending tonnage required, as U-bending often demands significantly higher force than air bending due to the tight geometric control needed.
    Remote Support
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%
