Home > Press Brake Punches > Gooseneck Punches
Gooseneck Punch Gooseneck Punch Gooseneck Punch Gooseneck Punch Gooseneck Punch

Gooseneck Punch

$340.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX PUNCH-System Amada

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Free Bending for Deep Box
    The defining advantage of the Gooseneck Punch (also known as a Swan-Neck Punch) is its specialized, undercut profile. This design provides crucial part clearance, allowing the tool to perform deep box bending and form return flanges without the previously bent walls of the workpiece colliding with the body of the press brake ram or the punch itself. This capability is indispensable for fabricators creating deep, multi-sided components, maximizing tooling flexibility and ensuring high part accuracy in complex sheet metal bending tasks.

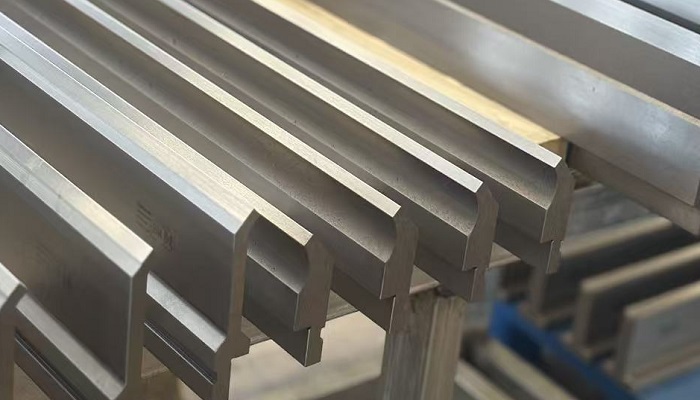

    press brake tooling goosenek punch
    Increased Tooling Rigidity
    Despite its complex shape, a high-quality Gooseneck Punch is engineered for superior tooling rigidity. The critical bending portion is strategically reinforced to withstand high bending tonnage, ensuring stability and preventing premature wear or deflection. This durability makes the punch a reliable choice for continuous use in air bending and bottoming operations, particularly on materials prone to springback. Investing in a robust gooseneck punch extends the press brake tooling life and guarantees long-term geometric repeatability for demanding deep-forming applications.
    press brake tooling goosenek punch
