Home > TRUMPF®/WILA® Tooling > Punches
FMWP.300.86°.R1 FMWP.300.86°.R1 FMWP.300.86°.R1 FMWP.300.86°.R1 FMWP.300.86°.R1

FMWP.300.86°.R1

$630.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 86°
    Radius：R 1 mm
    Height：300 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

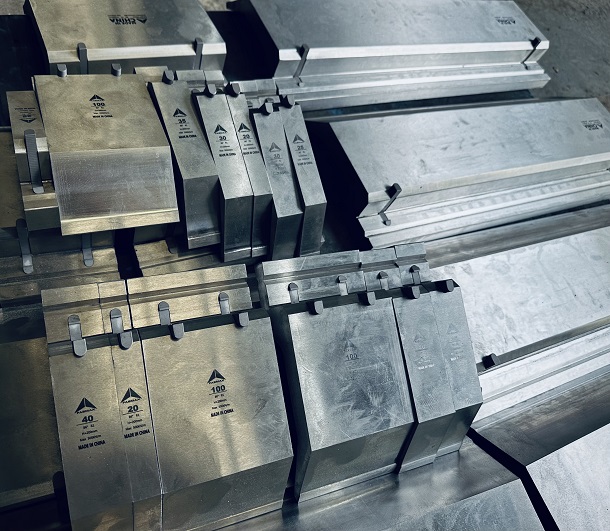

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

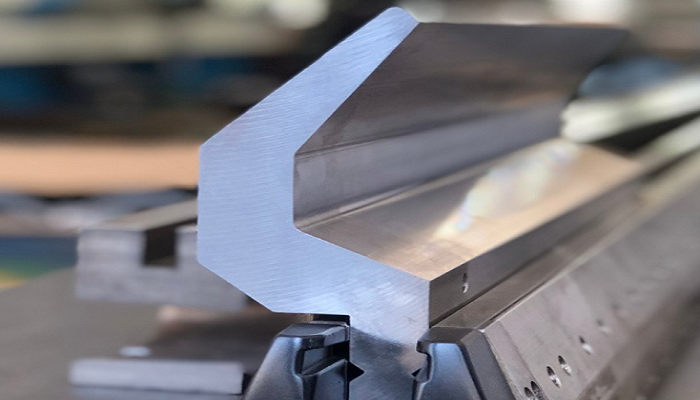

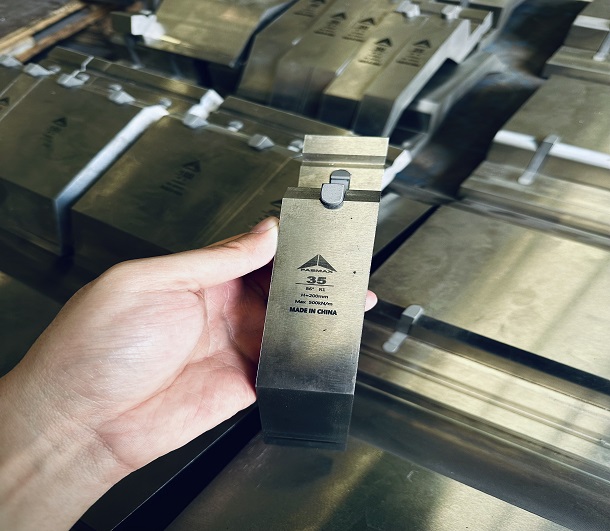

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

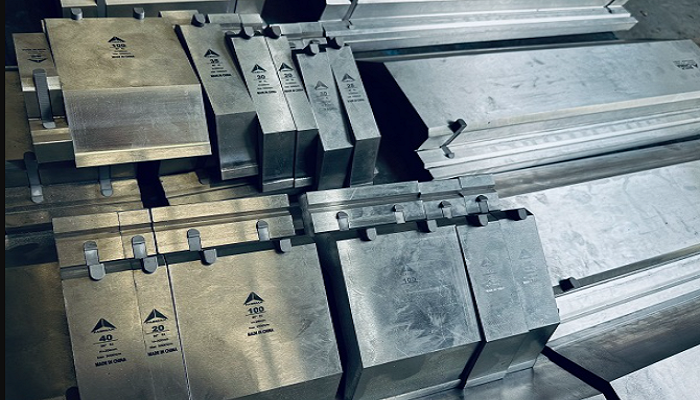

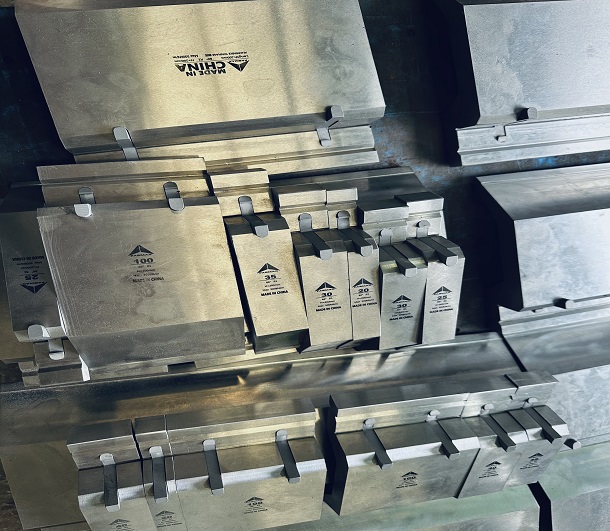

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Versatile WILA/TRUMPF punch
    Tackle complex bending projects with our versatile WILA/TRUMPF Gooseneck Punch. Its unique gooseneck design allows for clearing previously formed flanges, making it perfect for creating boxes, channels, and other intricate sheet metal parts. Compatible with standard WILA and TRUMPF press brake systems, this punch enables greater design flexibility. Manufactured from premium alloy steel, it combines strength with precision for accurate forming. Ideal for use in conjunction with V-dies and hemming dies in multi-step bending operations. Enhance your fabrication capabilities with this essential press brake tooling component.

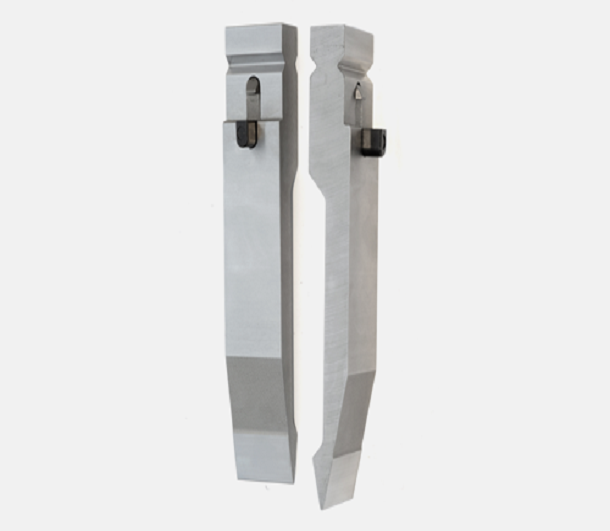

    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
    Accuracy WILA/TRUMPF punch
    Achieve sharp, tight bends with our high-accuracy WILA/TRUMPF Acute Angle Punch. Specifically designed for creating bends under 90 degrees, this punch is a must-have for precision sheet metal work. Its fine-tipped geometry and superior material quality prevent cracking and marking on sensitive materials. Fully interoperable with WILA and TRUMPF press brake tooling, it ensures perfect alignment and force application. Perfect for electronics enclosures, brackets, and other components requiring acute angles. This punch delivers the precision and repeatability needed for high-quality metal fabrication.
    Close-up of a durable TRUMPF / WILA punch tooling, showcasing its hardened steel construction and polished finish
