Home > Press Brake Dies > 1V Die
FMS.60.88°.6 FMS.60.88°.6 FMS.60.88°.6 FMS.60.88°.6 FMS.60.88°.6

FMS.60.88°.6

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening：6 mm
    Height：60 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

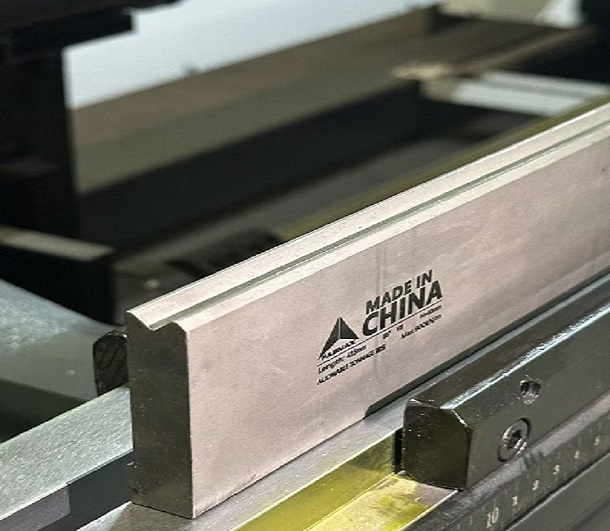

    Close-up of a durable 1V press brake tool, showcasing its machined groove for accurate air bending operations
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

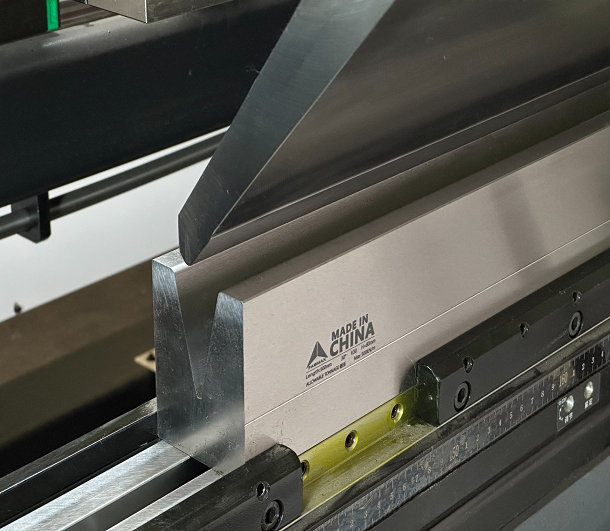

    Close-up of a durable 1V press brake tool, showcasing its machined groove for accurate air bending operations

    Close-up of a durable 1V press brake tool, showcasing its machined groove for accurate air bending operations

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Durable Solid 1V Bending Die
    Built for endurance, our solid one-piece 1V Bending Die handles demanding production environments. Forged from premium alloy steel and through-hardened, it offers exceptional resistance to deformation and chipping under high-tonnage pressure. Its robust construction ensures stability and longevity, reducing downtime and replacement costs. This heavy-duty die is the perfect workhorse for continuous bending operations on thicker plates and high-strength materials.

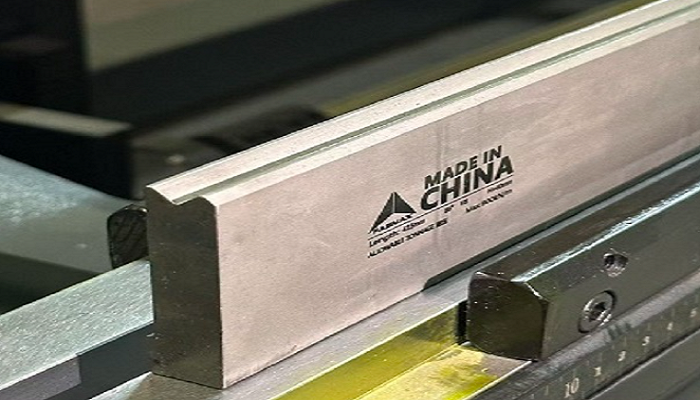

    press brake tools 1v die
    1V Die for Efficient BENDING
    Enhance shop floor efficiency with our versatile 1V Die. Its standardized design allows for quick and easy installation on any compatible press brake, significantly reducing tooling setup and changeover time between jobs. The precision-machined profile facilitates smooth material flow and reduces marking. An ideal solution for job shops and high-mix production, this die maximizes machine uptime and streamlines your bending workflow for various part profiles.

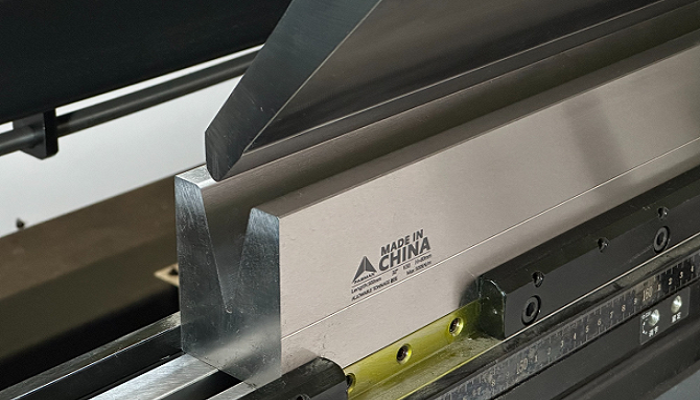

    press brake tools 1v die
