Home > Press Brake Dies > 1V Die
FMS.60.88°.4 FMS.60.88°.4 FMS.60.88°.4 FMS.60.88°.4 FMS.60.88°.4

FMS.60.88°.4

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 88°
    V-Opening： 4 mm
    Height：60 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    A precision 1V die for press brake bending, designed for creating sharp, narrow V-bends in metal sheets
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    A precision 1V die for press brake bending, designed for creating sharp, narrow V-bends in metal sheets.

    A precision 1V die for press brake bending, designed for creating sharp, narrow V-bends in metal sheets.

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • 1V Die for Standard Bending
    Our Universal 1V Die is the essential core tool for every press brake. Designed with a single, precision-ground V-opening, it delivers reliable and consistent bends for a wide range of general fabrication tasks. Manufactured from high-grade hardened tool steel, it provides excellent durability and wear resistance. Ideal for air bending various sheet metal thicknesses, this fundamental die simplifies setup, ensures cost-effective operation, and is a must-have staple for any metalworking shop's tooling inventory.

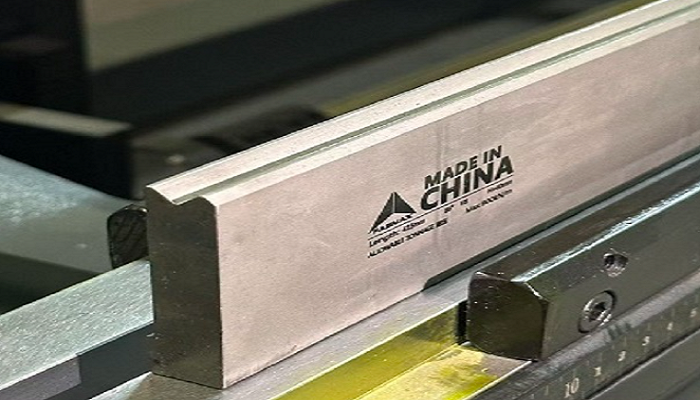

    press brake tools single-V die
    Precision 1V Die for Bending
    Achieve superior bend accuracy with our Precision 1V Die. Engineered for optimal performance in air bending processes, its carefully calibrated V-opening ensures precise control over the bend angle and minimizes springback. The heat-treated, high-chromium steel construction guarantees long-lasting performance and consistent results. This die is perfect for producing clean, sharp bends in mild steel, aluminum, and stainless steel, making it a reliable choice for quality-focused sheet metal fabrication.

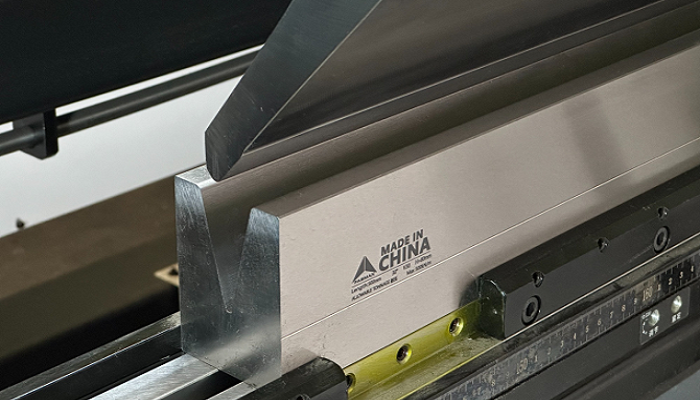

    press brake tools 1v die
