Home > Press Brake Dies > 2V Die
FMD.26.60°.1620 FMD.26.60°.1620 FMD.26.60°.1620 FMD.26.60°.1620 FMD.26.60°.1620

FMD.26.60°.1620

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    V-opening： 16 mm 20mm
    Height：26 mm
    Load：600 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Precision-ground 2V die for press brake tooling
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description

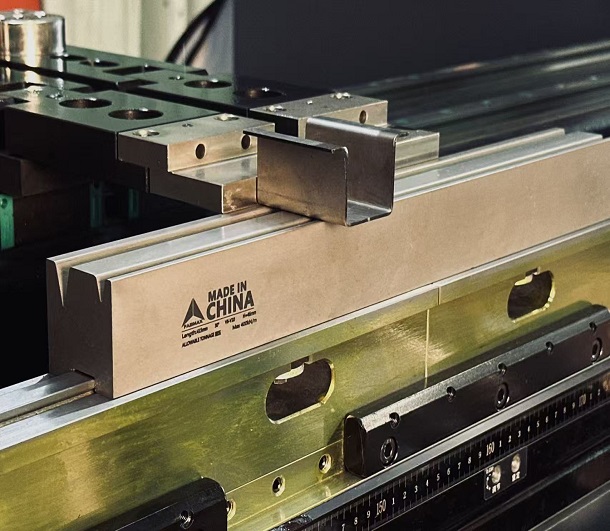

  • Precision 2V Die for Bending
    Our Precision 2V Die is a core tool for press brakes, engineered to deliver sharp, accurate 90-degree bends. Manufactured from heat-treated alloy tool steel, it offers superior strength, wear resistance, and longevity. The machined V-opening ensures consistent bending angles and minimizes material marking, making it ideal for medium-duty bending of mild steel, aluminum, and stainless steel. This reliable die enhances efficiency in producing boxes, brackets, and channels, reducing setup time and improving overall productivity in your metal fabrication shop.
    Remote Support

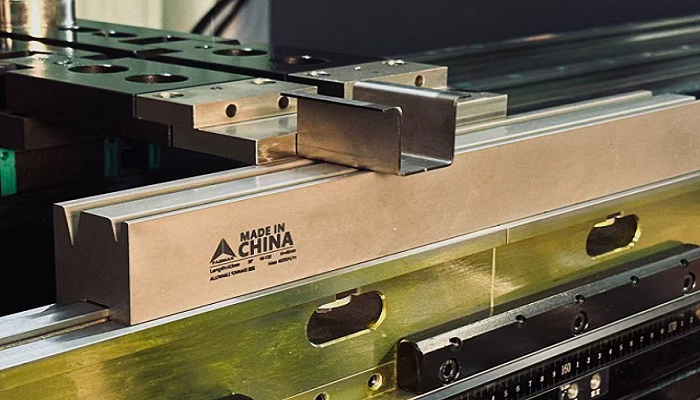

    High-Performance 2V Die
    Maximize press brake output with our High-Performance 2V Die. Its precision V-opening is optimized for air bending and bottoming, ensuring excellent control over bend angle and springback. Forged from premium steel and heat-treated for durability, it withstands high-volume use with minimal wear. This robust die is essential for achieving precise, repeatable bends in sheet metal, streamlining your workflow and reducing downtime for tool changes in any fabrication environment.
