Home > Press Brake Dies > Die Holder
Rail.15.50 Rail.15.50 Rail.15.50 Rail.15.50 Rail.15.50

Rail.15.50

$70.00Excl.tax Excl. Shipping costs
* Length（mm）
L=415mm L=835mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Width： 50 mm
    Height：15 mm
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

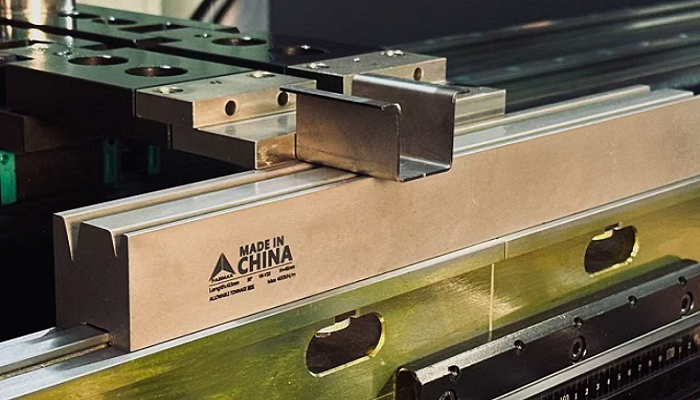

    Precision press brake die holder for secure and accurate bending operations
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

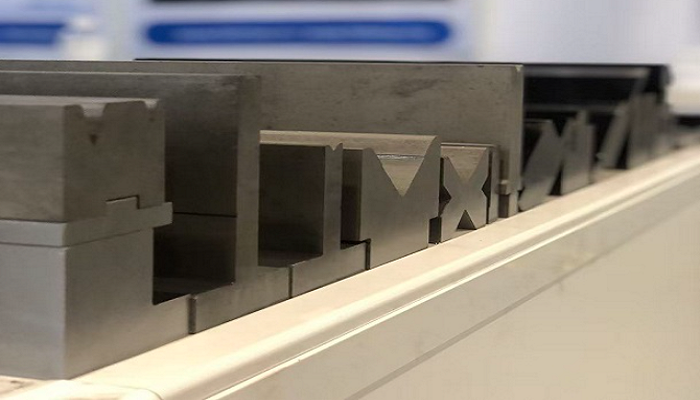

    Precision press brake die holder for secure and accurate bending operations

    Precision press brake die holder for secure and accurate bending operations

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Die Holder for Press Brake
    Our Universal Die Holder is a core component for any press brake tooling system. Designed to securely clamp a wide range of standard V-dies and specialty tooling, it ensures precise alignment and maximum stability during bending operations. Its robust, one-piece construction from high-strength steel minimizes deflection under load. This holder simplifies die changes, improves press brake safety, and enhances overall bending accuracy, making it an essential accessory for efficient and organized tool management in your fabrication shop.
    Precision press brake die holder for secure and accurate bending operations
    Quick-Change Die Holder
    Maximize press brake uptime with our Quick-Change Die Holder. Engineered for rapid tooling transitions, it features an intuitive clamping mechanism that allows operators to secure or release dies in seconds. This drastically reduces non-productive setup time between jobs. Built for durability and precise die seating, it ensures consistent bending results. Ideal for high-mix, low-volume production, this holder boosts overall equipment effectiveness and workflow flexibility in dynamic job shop environments.
    Precision press brake die holder for secure and accurate bending operations
