Home > Press Brake Forming > Hemming Tool
FMHD.80.10 FMHD.80.10 FMHD.80.10 FMHD.80.10

FMHD.80.10

$350.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=415mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

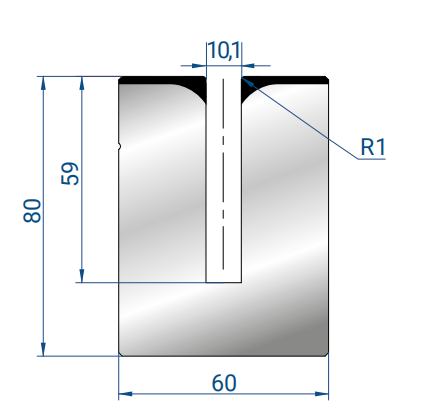

  • FABMAX-System Amada

    Angle： 60°
    V-opening： 10mm
    Height：80 mm
    Load：Max T/m=50.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description

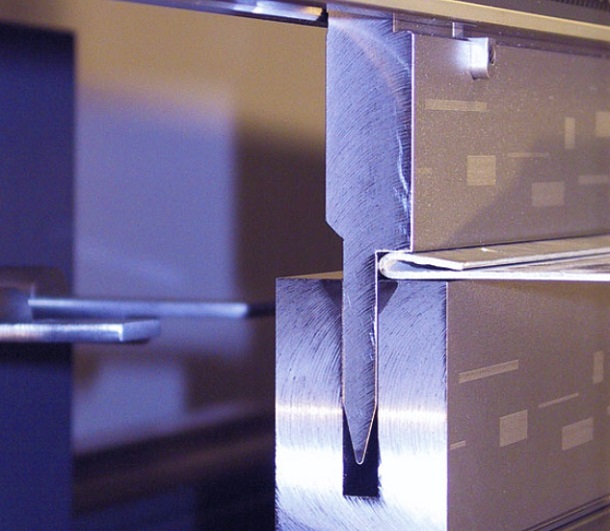

  • Managing Tool Wear
    The concentrated load during flattening bending causes significant wear on the working surface of the Hemming Tool. To counteract this, premium Press Brake Tooling often utilizes specialized surface treatments, such as nitriding or specific coatings, to enhance surface hardness and reduce abrasion. Effective wear management is key to maintaining the precision and tooling lifespan of the Flattening Tool in continuous, high-volume sheet metal fabrication environments.

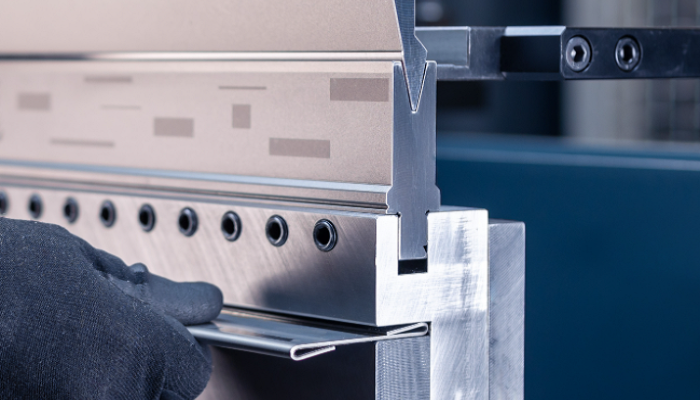

    Hemming Punch Flattening Punch For Sale Press Brake Tooling

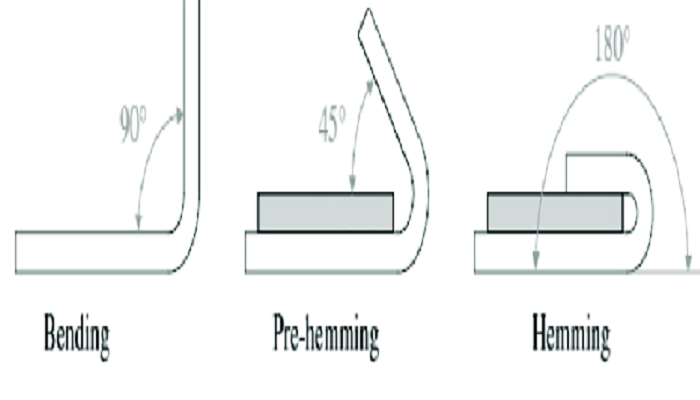

    Preventing Cracking During the Flattening Bending
    Successful use of a Hem Die requires careful assessment of the material's ductility and minimum bend radius limits. While the initial acute bend sets the stage, the final, intense flattening bending stroke is where cracking is most likely to occur, especially with materials exhibiting low elongation. Fabricators must ensure the material's properties are compatible with the severity of the hem, preventing costly scrap rate and guaranteeing the structural rigidity of the finished hem.
    Hemming Punch Flattening Punch For Sale Press Brake Tooling
