Home > Press Brake Forming > Hemming Tool

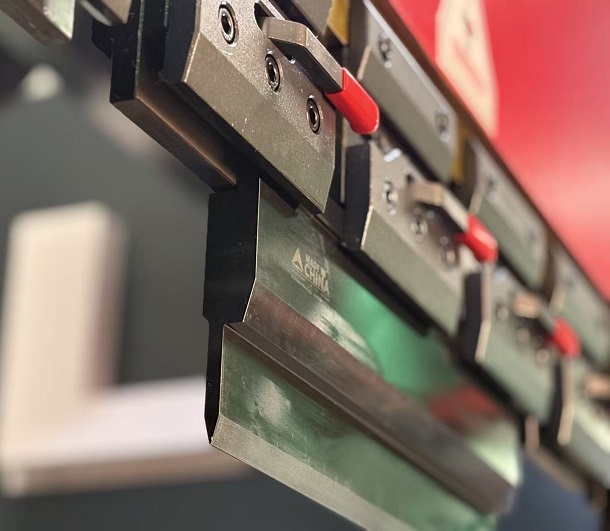

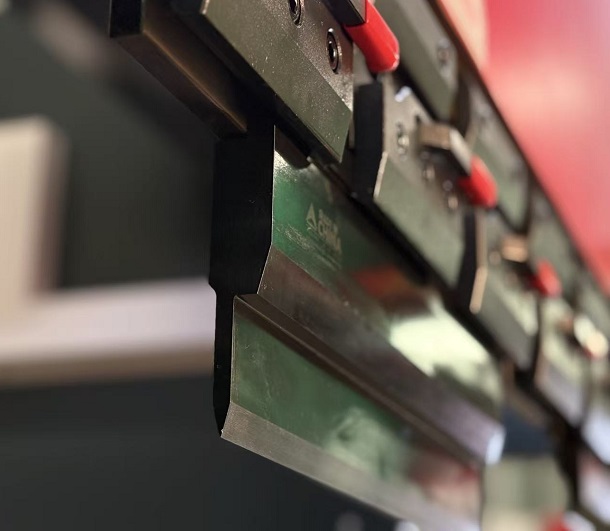

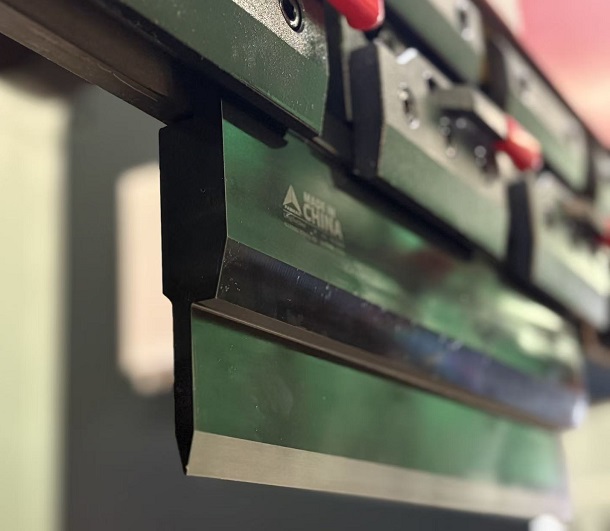

FMHP.128.24°.10 FMHP.128.24°.10 FMHP.128.24°.10 FMHP.128.24°.10 FMHP.128.24°.10

FMHP.128.24°.10

$320.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=415mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 24°
    Radius：R 0.6 mm
    Height：158 mm
    Load：Max T/m=80
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Required Capacity for Effective Flattening Bending
    When calculating the necessary bending tonnage for the Hemming Tool, fabricators must account for the force required to plastically deform and compress two layers of sheet metal thickness simultaneously. This high force demand for flattening bending means that Hem Dies are often limited to shorter bend lengths or require a high-capacity press brake. Accurate tonnage calculation is vital for the safety of the machine and for achieving a high-quality, fully closed hem.

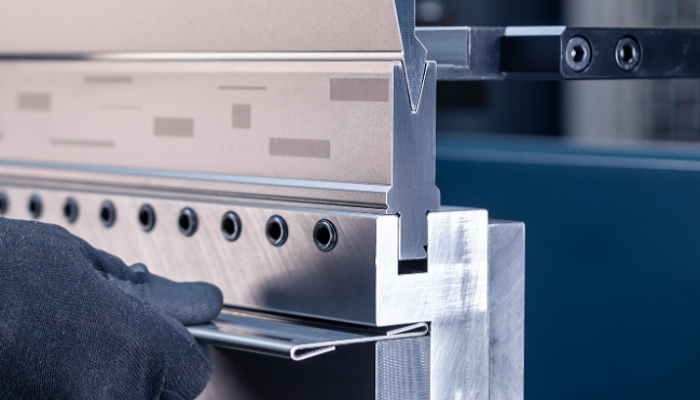

    Hemming Punch Flattening Punch For Sale Press Brake Tooling
    Hemming Tooling as a Dedicated Modular System

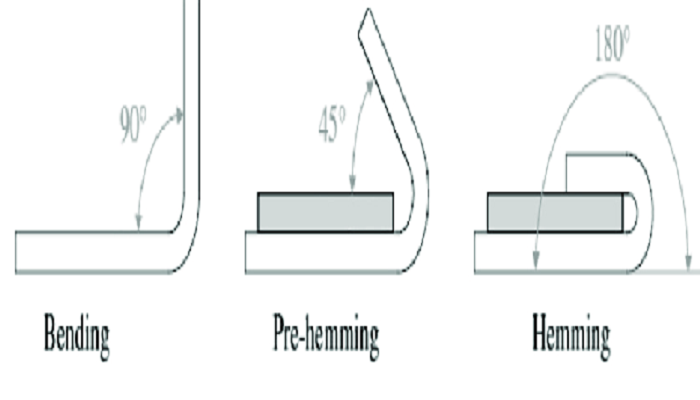

    In modern sheet metal fabrication, Hemming Tools are frequently integrated into a modular system where the acute bending tool set and the flattening die are designed to be swapped rapidly. This modular approach minimizes non-productive time associated with tool changeover between the two necessary steps. This dedication to process flow management ensures that the complex hemming operation, including the critical flattening bending stage, is executed with maximum production efficiency.
    Hemming Punch Flattening Punch For Sale Press Brake Tooling
