Home > Press Brake Dies > Multi-V Die
FMM.460 FMM.460 FMM.460 FMM.460 FMM.460

FMM.460

$200.00Excl.tax Excl. Shipping costs
Optional
* Length（mm）
L=415mm L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 85°-88°
    V-Opening：16 mm  22mm  35mm 50mm
    Height：60 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

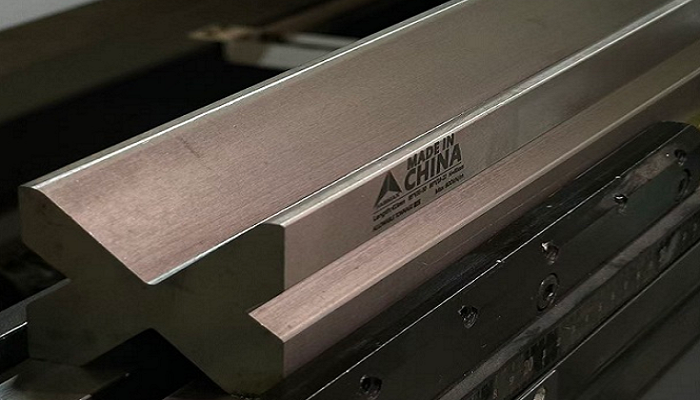

    A set of precision Multi-V dies for press brake tooling
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    A set of precision Multi-V dies for press brake tooling

    A set of precision Multi-V dies for press brake tooling

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Multi-V Die for Versatility
    Maximize press brake versatility with our Multi-V Die/4 Way Dies. This modular tool combines multiple V-opening sizes in a single die, allowing for diverse bending operations without tool changes. Crafted from hardened tool steel, it ensures durability and precision across various material thicknesses. Ideal for prototype shops and flexible production, it drastically reduces downtime, minimizes tooling inventory, and enhances workflow efficiency in all sheet metal fabrication tasks.
    A set of precision Multi-V dies for press brake tooling
    Modular Multi-V Die
    Our Modular Multi-V Die Set is the ultimate solution for flexible bending. Featuring reversible die segments with different V-openings, it enables quick adaptation to various bending radii and material gauges. The rugged, heat-treated construction provides lasting performance. This set optimizes press brake tooling storage and setup time, making it perfect for job shops and custom fabrication requiring frequent changeovers and high precision.
    A set of precision Multi-V dies for press brake tooling
