Home > Press Brake Forming > Radius Tool
FMRP.100.14 FMRP.100.14 FMRP.100.14 FMRP.100.14 FMRP.100.14

FMRP.100.14

$180.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    Radius：R 6 mm
    Height：65 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Setting the Bend Force
    When using radius tools, the necessary bending force (tonnage) is typically higher than that required for air bending with standard V-dies. This is because radius bending often involves coining or bottoming the material to fully set the desired radius and minimize springback. Operators must accurately calculate the required force and adjust the press brake down-stroke to ensure full penetration without overloading the machine or causing excessive material thinning at the bend point.

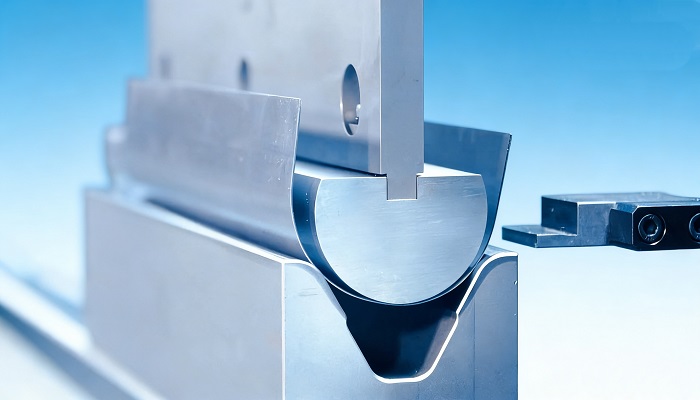

    Press Brake Tools Radius Punch
    Enhanced Tools Aesthetics
    Radius bending significantly enhances the aesthetic quality of finished products. A clearly defined, consistent round edge is often preferred in consumer goods, architectural panels, and enclosures over the sharp creases produced by standard bending. Using dedicated radius tools ensures a uniform appearance across all parts, contributing to a professional, high-end look and eliminating visual inconsistencies often seen when trying to mimic a radius using air bending.

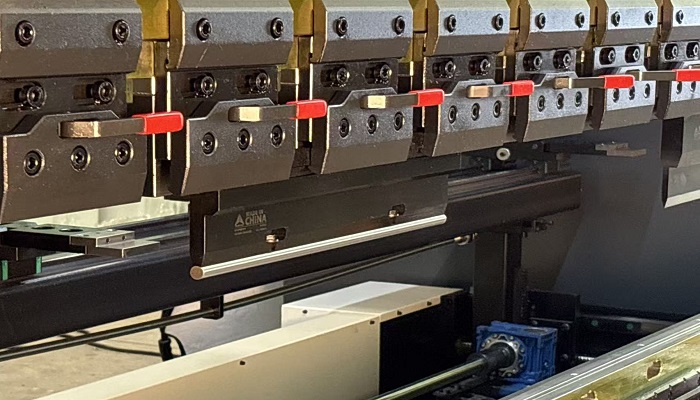

    Press Brake Tools Radius Punch
