Home > Press Brake Forming > Radius Tool
FMRP.87.14 FMRP.87.14 FMRP.87.14 FMRP.87.14 FMRP.87.14

FMRP.87.14

$300.00Excl.tax Excl. Shipping costs
* Length（mm）
L=835mm L=835mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Amada

    Angle： 60°
    Radius：R 6 mm
    Height：65 mm
    Load：1000 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

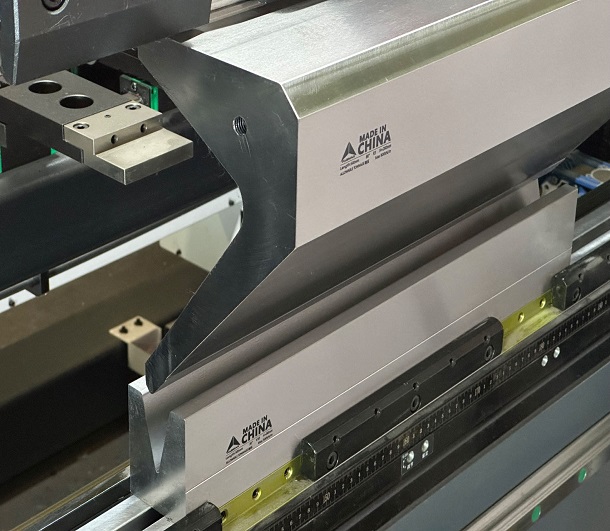

    Press brake punch
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Critical Role of Radius Tooling
    Press Brake Radius tools are essential for achieving precise, controlled internal bend radii in sheet metal fabrication. Unlike sharp V-dies, which result in a minimum radius dictated by material thickness and tensile strength, radius dies allow fabricators to specify and maintain a larger, exact radius required by engineering designs. This is crucial for parts subject to high stress concentration, as a larger radius improves structural integrity and fatigue life.

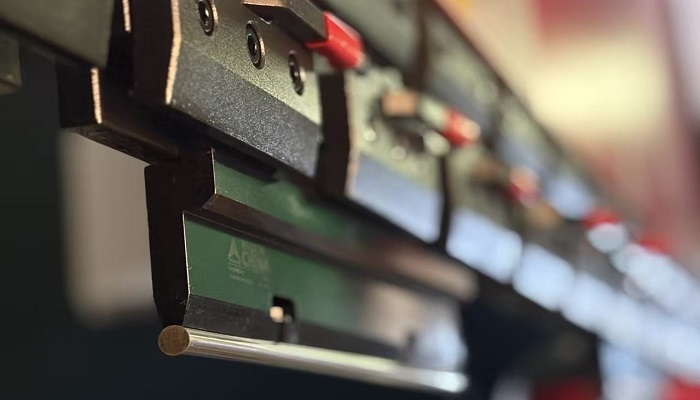

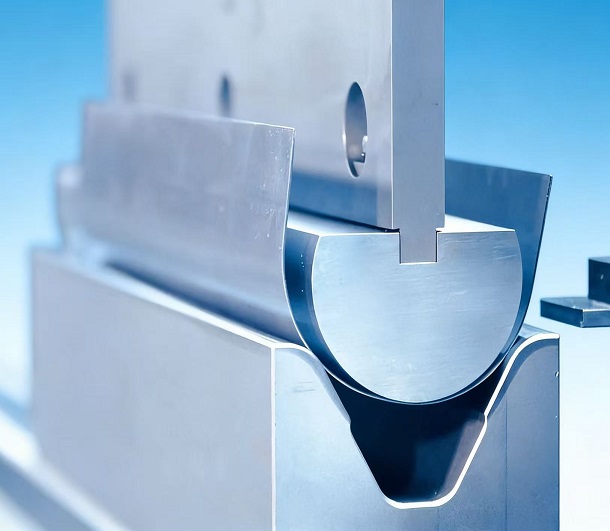

    Press brake tooling radius tool
    Selecting the Correct Radius Die
    The primary criterion for selecting a radius die is matching the die's forming radius (R-dimension) to the internal radius specified on the part blueprint. It's vital to consider the material's inherent springback; the actual formed radius may deviate slightly. Choosing a die with a wear-resistant material (like D2 tool steel) is also recommended for high-volume production to ensure the radius profile remains accurate over time, maintaining dimensional consistency.

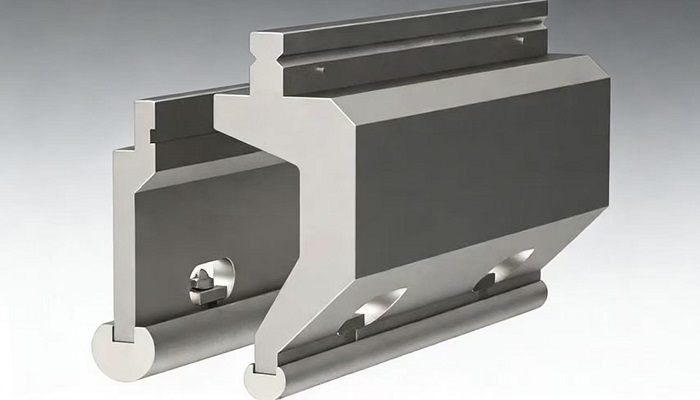

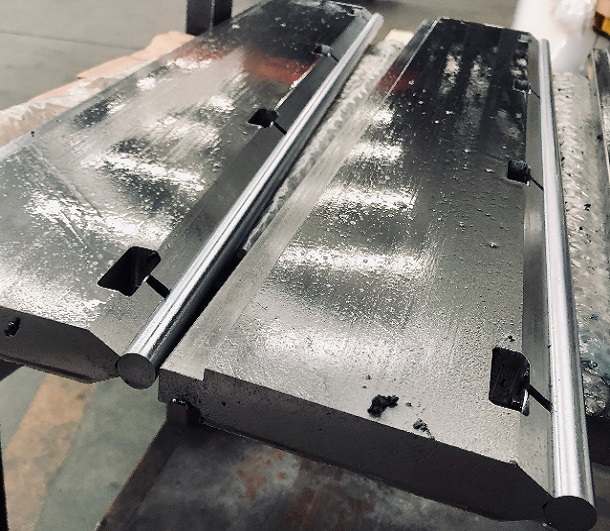

    Press brake tooling radius tool
