Home > Rolla-V® Tooling > Model 3
FMRV.M70.3 FMRV.M70.3 FMRV.M70.3 FMRV.M70.3 FMRV.M70.3

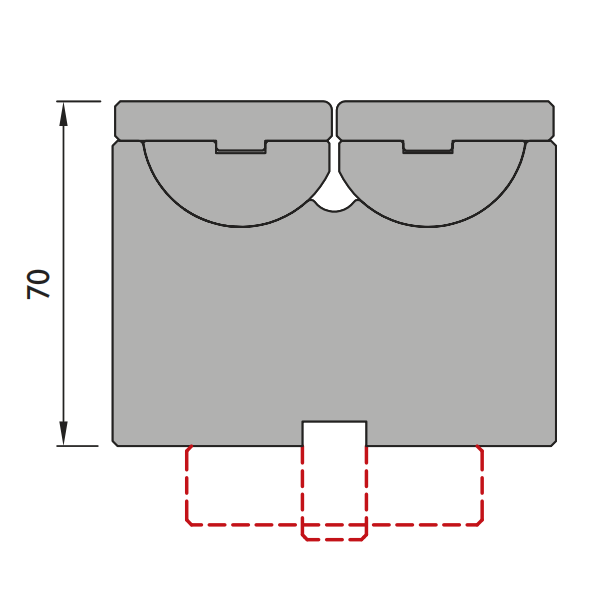

FMRV.M70.3

$800.00Excl.tax Excl. Shipping costs
* Length（mm）
L=550mm Sec. L=500mm
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  • Model 3
    ▼ Standard lengths 500mm, 100mm and 455mm segmented
    ▼ Segmented 455mm lengths includes 200mm, 100mm, 60mm, 50mm, 45mm
    ▼ FMRV.M70.3 Tang sizes 60mm, 13mm, 12.7mm, 12.7mm offset




    Maximum load capacity
    (t/m)     		Material thickness
    (mm)    		 Minimum bend angle
    (degrees)    		 Tonnage required
    (t)    		 Minimum outside flange
    (mm)    		 Max outside radius


    250

    2.0

    68.0

    7.0

    22.5

    13.9

    250

    4.0

    47.0

    34.0

    22.5

    11.9

    250

    6.0

    50.0

    90.0

    22.5

    9.9

    Note: Max recommended thickness 6.0 mm (8.0 mm thickness may be possible)
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Faster Bending Speeds
    The inherently low-friction nature of the Rolla-V Die allows for faster ram speed during the actual bending phase without generating excessive heat or surface damage. This optimization of the bending cycle time directly translates into higher parts per hour (PPH) and improved production efficiency across the entire press brake operation.

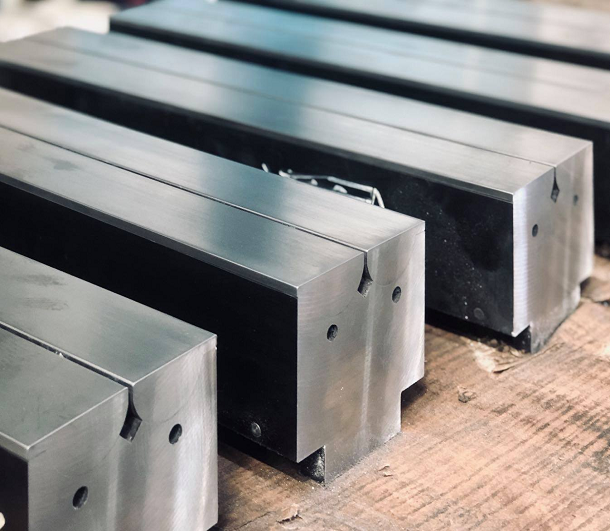

    press brake tooling rolla-v die
    Simple Roller Replacement
    While the die body is built for durability, the rollers themselves are designed for relatively easy replacement. This modularity ensures that if a roller sustains damage or wear after extensive use, it can be quickly swapped out, minimizing tooling downtime and ensuring the Rolla-V Die is rapidly returned to service on the press brake.

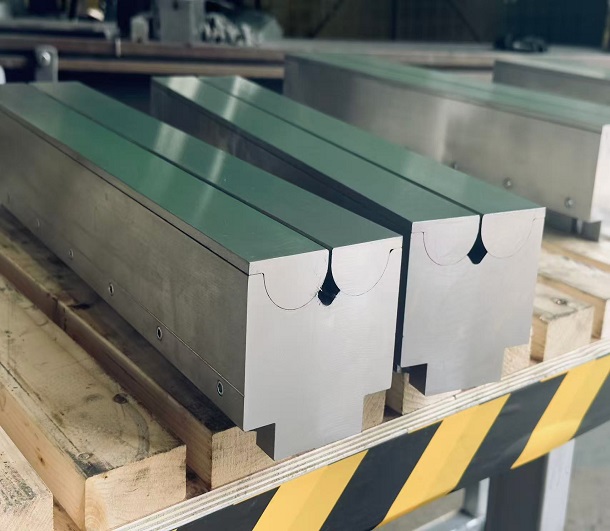

    press brake tooling rolla-v die
