FMWD.100.30°.10

Name: FMWD.100.30°.10
Brand: FABMAX
Price: 150.00 $
Availability: InStock
Rating: 5 (1 reviews)

$150.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information
FABMAX-System Wila

Angle： 30°
V-Opening：10 mm
Height: 100 mm
Load：450 kN/m max.
Material：42CrMo, 650 - 800 N/mm

Die Feature

Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Items
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description

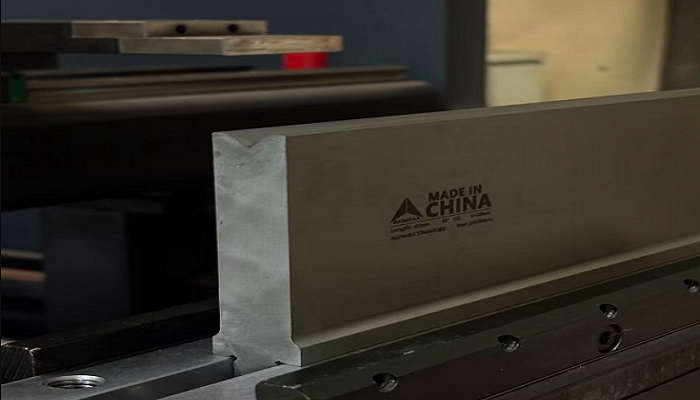

Precision WILA/TRUMPF Die

Our WILA/TRUMPF Press Brake Die is engineered for exceptional precision in metal bending applications. Designed to be fully compatible with WILA and TRUMPF press brake machines, this die ensures accurate angles and consistent results for sheet metal bending. Made from high-quality tool steel, it offers durability and wear resistance, ideal for high-volume production. The die features a precision-ground V-opening that facilitates smooth bending of materials like mild steel, stainless steel, and aluminum. With easy installation and minimal setup time, this press brake tooling enhances productivity in fabrication shops. Suitable for CNC or manual press brakes, it supports various bending tasks, including acute angle dies, hemming dies, and radius bends. Invest in this die for superior bending accuracy and extended tool life in metal fabrication.

Durable WILA/TRUMPF Die

Crafted from premium hardened steel, our WILA/TRUMPF Bending Die is built to withstand rigorous press brake operations. Specifically designed for compatibility with WILA and TRUMPF press brakes, it ensures a perfect fit and optimal performance. Its robust construction reduces frequent replacements, lowering downtime and maintenance costs. Precision machining guarantees consistent bending results for V-die and gooseneck die setups. This die is suitable for bending diverse materials, including copper, steel sheets, and aluminum. With enhanced durability and deformation resistance, it is a cost-effective solution for metal fabrication shops aiming to improve efficiency and output quality. Choose this press brake tooling for reliable, long-lasting performance in sheet metal bending applications.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%

FMWD.100.30°.10

FABMAX-System Wila

Angle： 30° V-Opening：10 mm Height: 100 mm Load：450 kN/m max. Material：42CrMo, 650 - 800 N/mm

Angle： 30°
V-Opening：10 mm
Height: 100 mm
Load：450 kN/m max.
Material：42CrMo, 650 - 800 N/mm
