Home > TRUMPF®/WILA® Tooling > Punches
FMWP.155.28°.R1 FMWP.155.28°.R1 FMWP.155.28°.R1 FMWP.155.28°.R1 FMWP.155.28°.R1

FMWP.155.28°.R1

$270.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle： 28°
    Radius：R 1 mm
    Height：155 mm
    Load：800 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

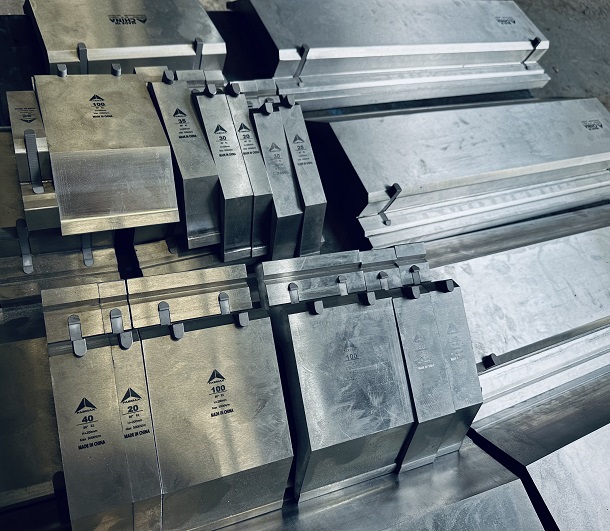

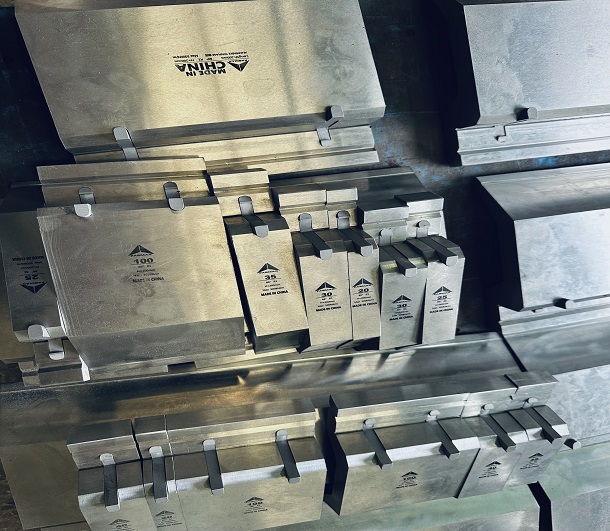

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

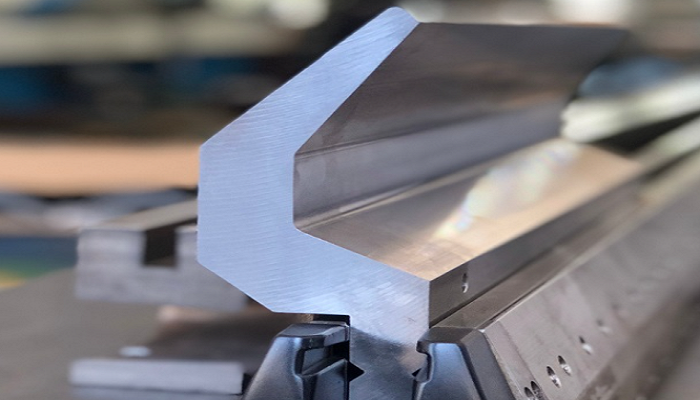

    A precision TRUMPF / WILA punch with a sharp, acute angle for fine, detailed bends in sheet metal
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%



    A precision TRUMPF / WILA punch with a sharp, acute angle for fine, detailed bends in sheet metal

    A precision TRUMPF / WILA punch with a sharp, acute angle for fine, detailed bends in sheet metal

  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Premium WILA/TRUMPF punch
    Our WILA/TRUMPF Press Brake Punch is engineered for high-precision bending in sheet metal fabrication. Designed to perfectly match WILA and TRUMPF press brake tooling systems, this punch ensures accurate angles and clean bends every time. Made from high-grade chrome vanadium steel, it offers exceptional durability and wear resistance for prolonged tool life. Ideal for use with compatible press brake dies in V-die bending, air bending, and bottoming operations. Its precision-ground tip and body guarantee consistent performance, reducing setup time and increasing productivity in your CNC or manual press brake. Upgrade your metal forming process with this reliable, industry-standard punch.

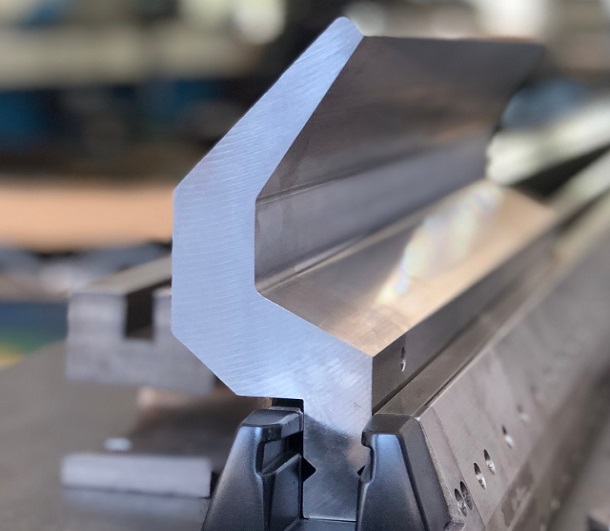

    A precision TRUMPF / WILA punch with a sharp, acute angle for fine, detailed bends in sheet metal
    Durable WILA/TRUMPF punch
    Maximize your press brake’s performance with our heavy-duty WILA/TRUMPF Punch. Crafted from hardened tool steel, this punch is built to withstand intense pressure and high-volume production runs without deformation. Fully compatible with WILA and TRUMPF tool holders and dies, it ensures seamless integration and optimal force distribution. Suitable for bending a wide range of materials, including mild steel, stainless steel, and aluminum. Features a robust design that minimizes deflection, ensuring precise bend angles and consistent results. This punch is a cost-effective solution for fabricators seeking longevity and reliability in their press brake tooling.

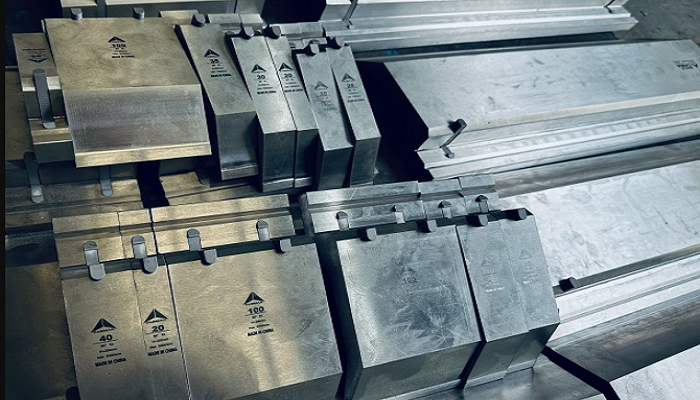

    A precision TRUMPF / WILA punch with a sharp, acute angle for fine, detailed bends in sheet metal
