Home > TRUMPF®/WILA® Tooling > Punches
FMWP.220.60°.R4 FMWP.220.60°.R4 FMWP.220.60°.R4 FMWP.220.60°.R4 FMWP.220.60°.R4

FMWP.220.60°.R4

$480.00Excl.tax Excl. Shipping costs
* Length（mm）
L=515mm L=550mm Sec.
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information

  • FABMAX-System Wila

    Angle：60°
    Radius：R 4 mm
    Height：220 mm
    Load：2500 kN/m max.
    Material：42CrMo, 650 - 800 N/mm

    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.

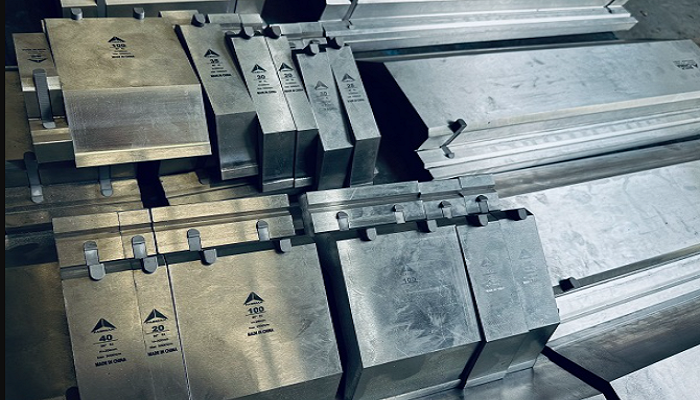

    TRUMPF / WILA punch and die pair aligned in a press brake, demonstrating the tooling setup for a bending operation
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%

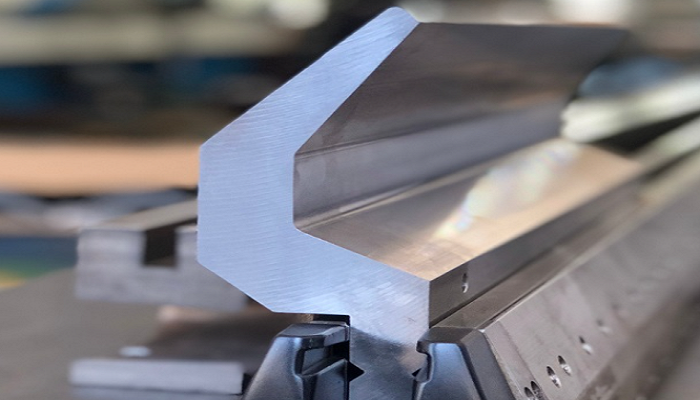

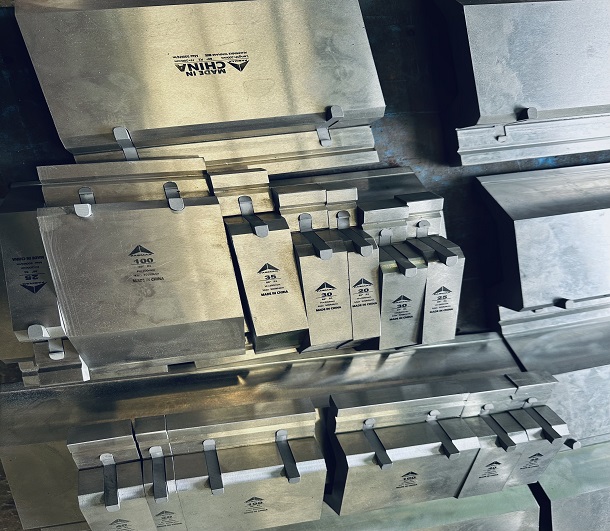

    TRUMPF / WILA punch and die pair aligned in a press brake, demonstrating the tooling setup for a bending operation

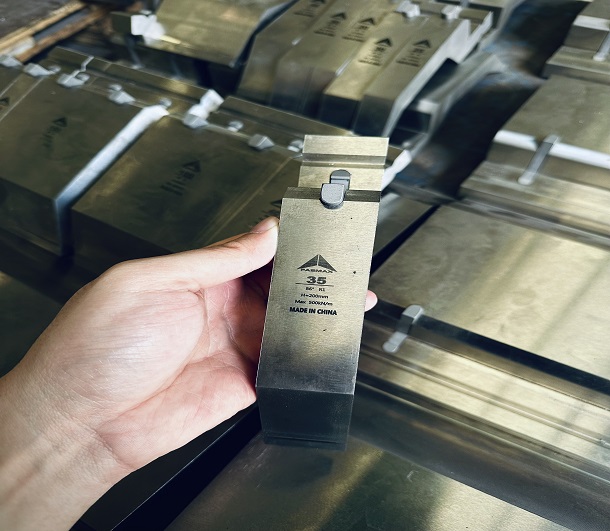

    TRUMPF / WILA punch and die pair aligned in a press brake, demonstrating the tooling setup for a bending operation

  • Item
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Punch for Seamless bending
    Our WILA/TRUMPF punches ensure seamless integration with your existing press brake tooling. Designed for easy compatibility with WILA and TRUMPF systems, these tools reduce downtime and improve workflow efficiency. Made from premium materials, they offer reliable performance for various bending applications. These press brake punches are a smart choice for fabricators seeking interoperability and quality. Enhance your machine's capability with our expertly designed punches.

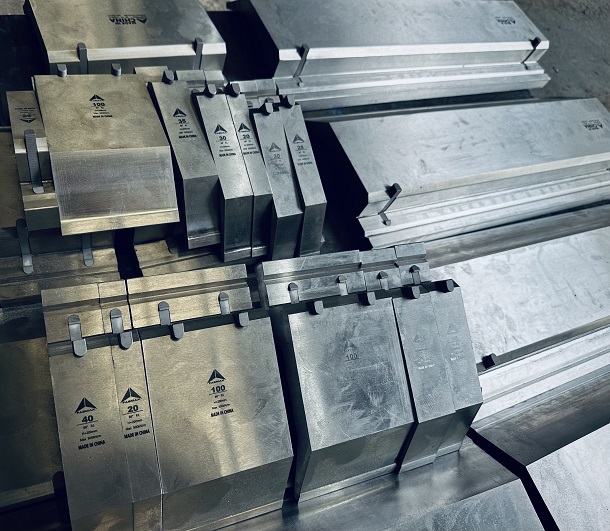

    TRUMPF / WILA punch and die pair aligned in a press brake, demonstrating the tooling setup for a bending operation
    Punches for Efficient bends
    Boost your metal fabrication efficiency with our cost-effective WILA/TRUMPF punches. These press brake tools provide excellent value without compromising on quality. Compatible with WILA and TRUMPF press brakes, they ensure smooth and accurate bending cycles. Perfect for small to large-scale operations, these punches help reduce overall production costs. Invest in our dependable tooling solutions for consistent and economical bending results.
    TRUMPF / WILA punch and die pair aligned in a press brake, demonstrating the tooling setup for a bending operation
