Home > Press Brake Forming > Z-Style Tool

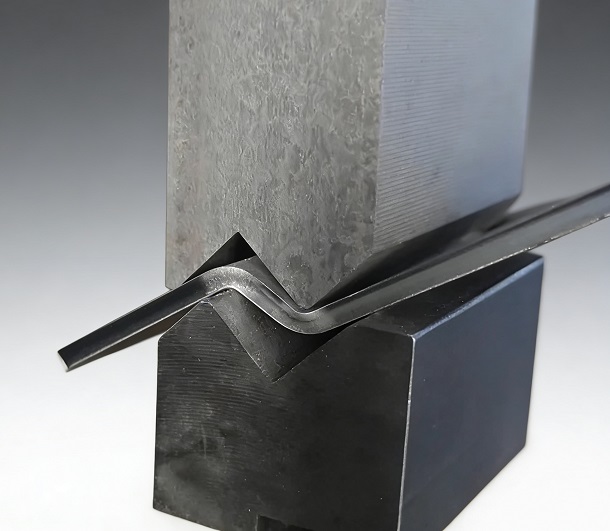

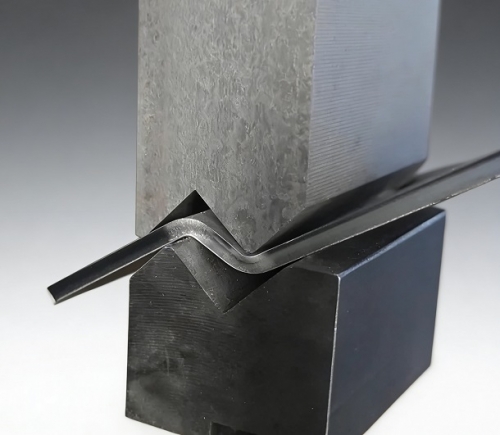

FMZ.1.90° FMZ.1.90° FMZ.1.90° FMZ.1.90°

FMZ.1.90°

$150.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Precision Engineered

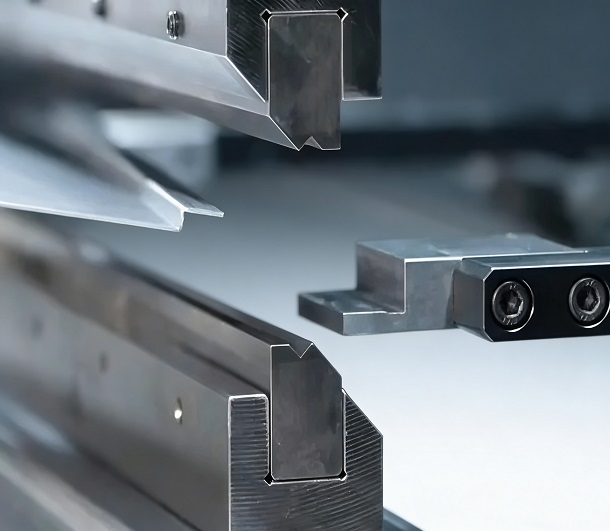

    The design of effective Joggle Tools precisely accounts for the material's gauge thickness. High-quality Offset Tools are engineered with specific clearances to ensure that when the Z-bend is formed, the resulting offset accurately accommodates the full thickness of the material, creating a perfect step for subsequent overlapping. This crucial feature is key to maintaining dimensional accuracy and is a primary consideration when selecting the correct Z-Style Die for a given sheet metal fabrication project, ensuring the strength and flatness of the final joint.
    Press brake tooling Offset tool Joggle tool
    Enhanced Safety and Operator Efficiency
    By turning a complex, multi-step process into a single-stroke operation, Joggle Tools inherently improve safety on the press brake. The operator handles the part once, minimizing the risk associated with repositioning large or cumbersome pieces. This simplified workflow not only enhances operator efficiency but also reduces the opportunity for positional errors or material slip-ups, contributing to a cleaner, safer, and more productive sheet metal bending environment.
    Press brake tooling Offset tool Joggle tool
