Home > Press Brake Forming > Z-Style Tool

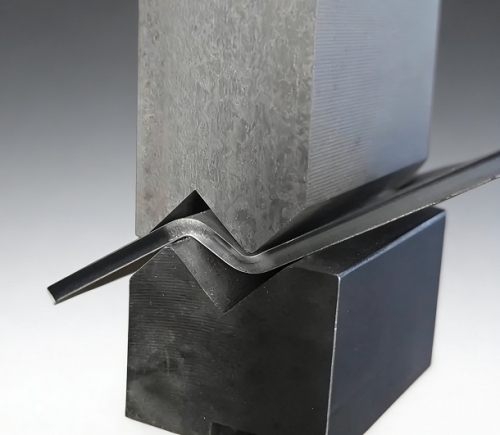

FMZ.5.5.90° FMZ.5.5.90° FMZ.5.5.90° FMZ.5.5.90°

FMZ.5.5.90°

$150.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Optimizing Tooling Inventory Management
    Many professional Offset Tools are supplied as segmented tooling. This modular approach allows the operator to combine various tool segments (e.g., 50mm, 100mm, 300mm) to precisely match the required offset bend length of the workpiece. This tooling flexibility minimizes waste and maximizes material utilization. It also simplifies the management of the press brake tooling inventory, as smaller, standardized segments are easier to stock and replace than a single long, custom die.

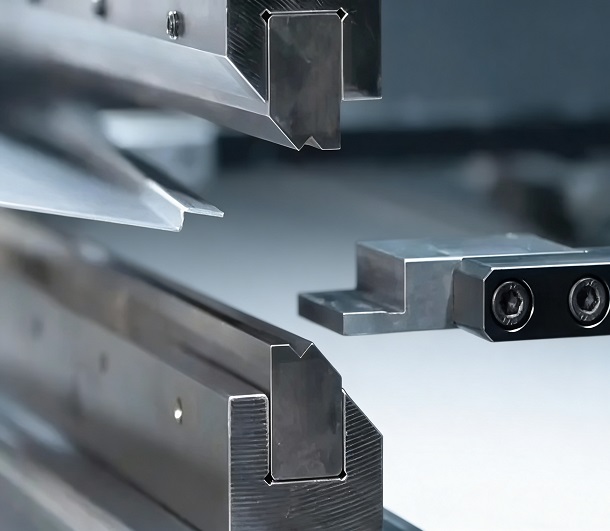

    Press brake tooling offset tool joggle tool
    Z-Style Tooling Longevity
    High-end Joggle Tools feature precision guiding shoulders or keyways designed to ensure the male and female forming sections are always perfectly centered under the press brake ram. This guaranteed tool alignment is critical to prevent asymmetrical loading and stress concentration on the tool's forming edges, thereby significantly extending the tooling lifespan and safeguarding the machine's internal components from undue stress during high-tonnage Z-profile forming.

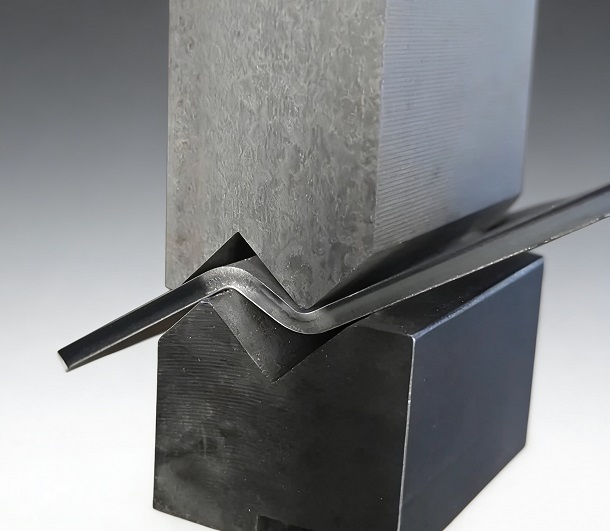

    Press brake tooling offset tool joggle tool
