Home > Press Brake Forming > Z-Style Tool
FMZ.2.150° FMZ.2.150° FMZ.2.150° FMZ.2.150°

FMZ.2.150°

$150.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Single-Cycle Precision for Z-Profiles

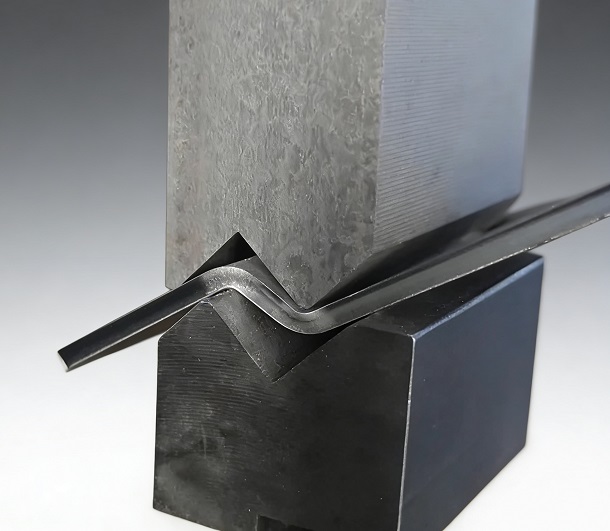

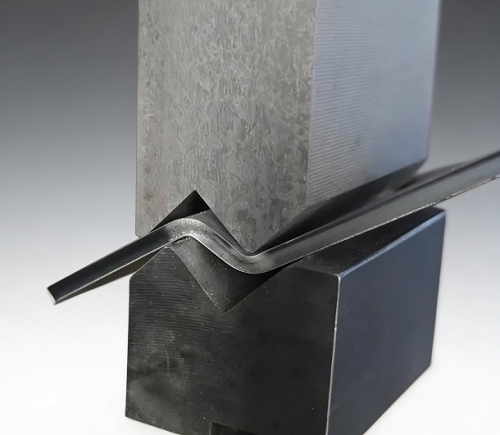

    The foremost advantage of Joggle Tools (or Z-Style Dies) is their unique ability to form a precise Z-bend or offset with a single stroke of the press brake. This single-hit forming capability drastically reduces bending cycle time compared to multi-step methods using standard V-Dies and punches. This specialized Press Brake Tooling is engineered for high-volume production of components requiring precise dimensional offsets for assembly, boosting overall manufacturing efficiency and ensuring perfect part repeatability.
    Press brake tooling Offset tool Joggle tool
    Guaranteeing Perfect Flange Parallelism
    Offset Tools are designed to lock the material securely during the forming process, guaranteeing exceptional flange parallelism and consistent offset depth across the entire length of the bend. This level of precision is critical for creating joints with zero gap and maximum contact area, which is vital for high-quality welding, riveting, or creating seamless laps. The robust design ensures the structural components meet strict geometric tolerances, enhancing the load-bearing capacity of the final sheet metal fabrication.
    Press brake tooling Offset tool Joggle tool
