Home > Press Brake Forming > Z-Style Tool

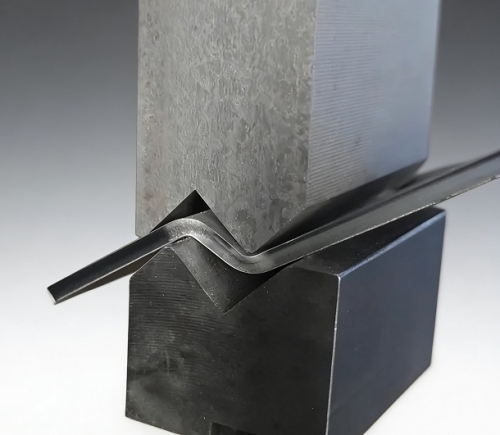

FMZ.2.5.140° FMZ.2.5.140° FMZ.2.5.140° FMZ.2.5.140°

FMZ.2.5.140°

$150.00Excl.tax Excl. Shipping costs
ADD TO CART
TEAMS
Dedicated service teams.
KNOW-HOW
More than 25 years of experience
QUALITY
Outstanding quality
SERVICE
24-hour quick response
  • Information
  •
    Punch FEature
    1. Most tools can be easily loaded by a single operator.
    2. Easy to store.
    3. All sectionalised tools come pre-cut in nine different pieces.
    4. Most sectionalised punches include two ear pieces (horns).
    5. Punches are induction hardened, to 45-50 HRC but 55-60HRC is available for every punch in the tooling line.
    6. Special Tooling available.

    PUNCH SECTION LENGTHS: 100mm LEFT EAR / 100mm RIGHT EAR / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
    Die Feature
    Single V tooling and double V tooling has only one or two tooling grooves, which is very common in CNC press brake and has high precision. Multi-V lower toolings are mostly square toolings with multiple tooling grooves on four surfaces of different sizes. The advantage is that there are many tooling grooves and it can adapt to the bending of various thick plates.

    DIE SECTION LENGTHS:100mm / 100mm / 10mm / 15mm / 20mm / 40mm / 50mm / 200mm / 300mm Note: Special lengths are available at additional cost, just select the standard length and ask us to cut to your requirements.
  • Air Bending Force
  •
    Air bending force
    Required press force at 90° air bending, force in ton/mtr.

    The charts below give the appropriate tonnage to air bend mild steel.

    Bending force for other metals:
    Soft aluminium Tons per unit length x 50%
    Aluminium alloys heat treated Tons per unit length x 100%
    Stainless Tons per unit length x 150%




  • Items
  • Order：

    Minimum order is $20.00.


    Special Orders：

    All special orders are non-cancelable, non-returnable, and non-refundable.


    Payment Terms：

    Terms are net 10 days. Catalog prices are subject to change without notice.


    Freight：

    Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).


    Order Cancellation：

    In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.


    Returned Material：

    A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

    Claims：

    All claims or product shortages must be made within 30 days of the invoice date.
  • Description
  • Streamlining Complex Bending Workflows
    By consolidating the two required bends into one specialized tool, Z-Style Dies eliminate the need for the operator to manually flip or reposition the material between bends. This simplification of the bending process reduces potential operator error and significantly cuts down on non-productive time. Utilizing these dedicated Press Brake Tooling systems streamlines complex workflows, making the creation of stiffeners and overlapping joints faster and more consistent than traditional segmented air bending approaches.

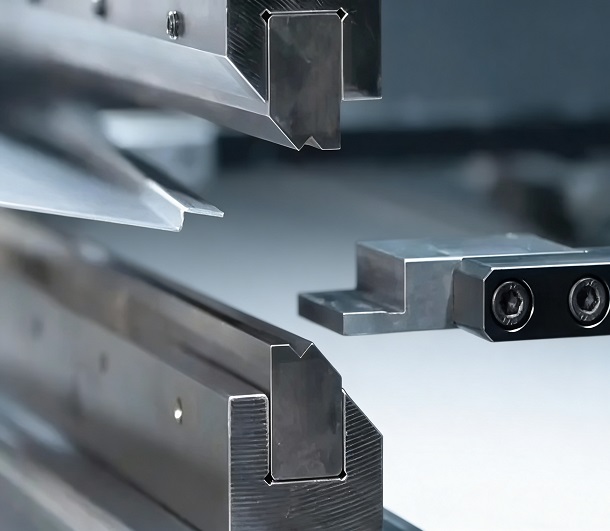

    Press brake tooling Offset tool Joggle tool
    Ensuring Flush Fit for Assembly and Sealing
    The precise nature of the offset produced by Joggle Dies creates a perfect recessed step, allowing two metal sheets to overlap and sit completely flush. This flush fit is essential not only for superior aesthetics but also for effective sealing against dust or moisture in applications like automotive panels, HVAC ducting, or architectural facades. Choosing the correct offset tool guarantees a professional finish and enhances the functionality of the assembled sheet metal component.

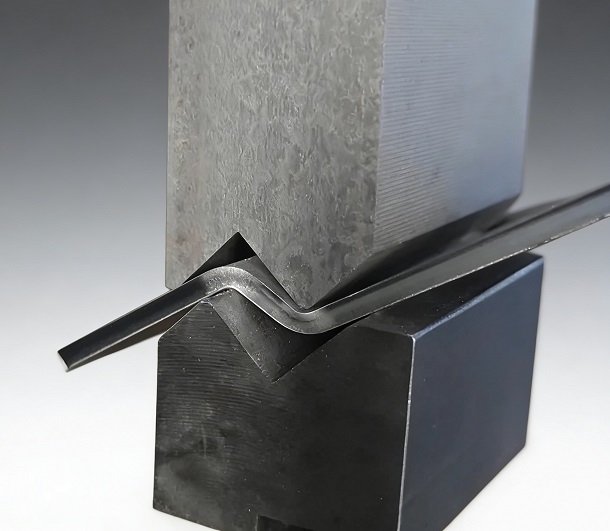

    Press brake tooling Offset tool Joggle tool
