Maximum load capacity (t/m) |
Material thickness (mm) |
Minimum bend angle (degrees) |
Tonnage required (t) |
Minimum outside flange (mm) |
Max outside radius |
100 |
0.7 |
40.0 |
5.0 |
3.0 |
3.0 |
100 |
1.1 |
35.0 |
13.0 |
3.9 |
2.6 |
100 |
1.5 |
35.0 |
27.0 |
4.2 |
2.2 |
Maximum load capacity (t/m) |
Material thickness (mm) |
Minimum bend angle (degrees) |
Tonnage required (t) |
Minimum outside flange (mm) |
Max outside radius |
150 |
2.0 |
59.0 |
21.0 |
8.5 |
6.0 |
150 |
3.0 |
47.0 |
55.0 |
9.3 |
5.0 |
150 |
3.2 |
47.0 |
65.0 |
9.3 |
4.8 |
Maximum load capacity (t/m) |
Material thickness (mm) |
Minimum bend angle (degrees) |
Tonnage required (t) |
Minimum outside flange (mm) |
Max outside radius |
250 |
2.0 |
68.0 |
7.0 |
22.5 |
13.9 |
250 |
4.0 |
47.0 |
34.0 |
22.5 |
11.9 |
250 |
6.0 |
50.0 |
90.0 |
22.5 |
9.9 |
Maximum load capacity (t/m) |
Material thickness (mm) |
Minimum bend angle (degrees) |
Tonnage required (t) |
Minimum outside flange (mm) |
Max outside radius |
300 |
6.0 |
78.0 |
26.0 |
56.6 |
36.4 |
300 |
8.0 |
76.0 |
50.0 |
56.6 |
36.4 |
300 |
12.0 |
73.0 |
129.0 |
56.6 |
36.4 |
Soft aluminium | Tons per unit length x 50% |
Aluminium alloys heat treated | Tons per unit length x 100% |
Stainless | Tons per unit length x 150% |

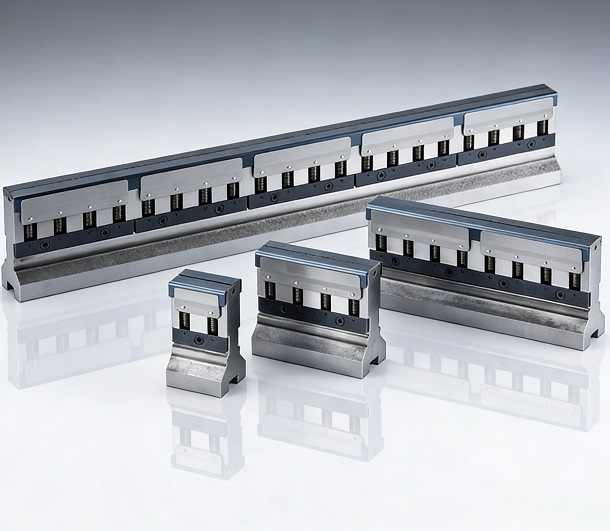

Enhanced Sheet Metal Bending Performance
The Rolla-V Die excels in sheet metal bending tooling, delivering precise bends across a wide range of material thicknesses. Its innovative design allows it to produce clean, accurate bends with minimal distortion, ensuring excellent part quality.
Hydraulic Clamping System Compatibility
This die is perfectly compatible with hydraulic clamping systems, ensuring faster setup times and reliable performance. Its ability to integrate seamlessly with this system provides smooth operation, reducing production downtime and increasing efficiency.
Gooseneck Punch and Crowing System Integration
The Rolla-V Die is ideal for use with gooseneck punches and Crowing systems, making it suitable for a variety of complex bending applications. This flexibility makes it a go-to solution for metal shops working on custom and precision parts.

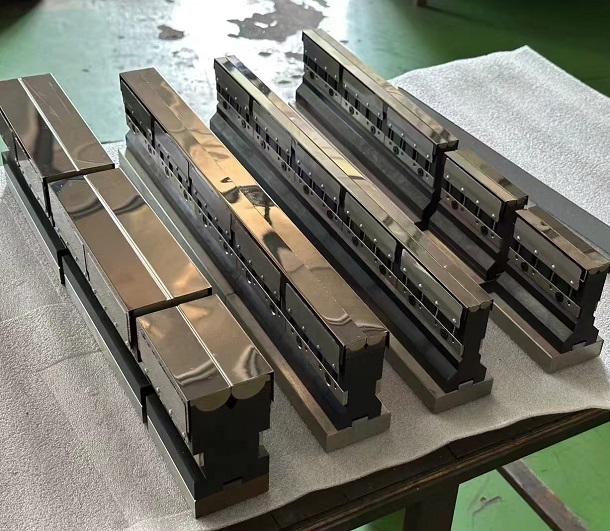

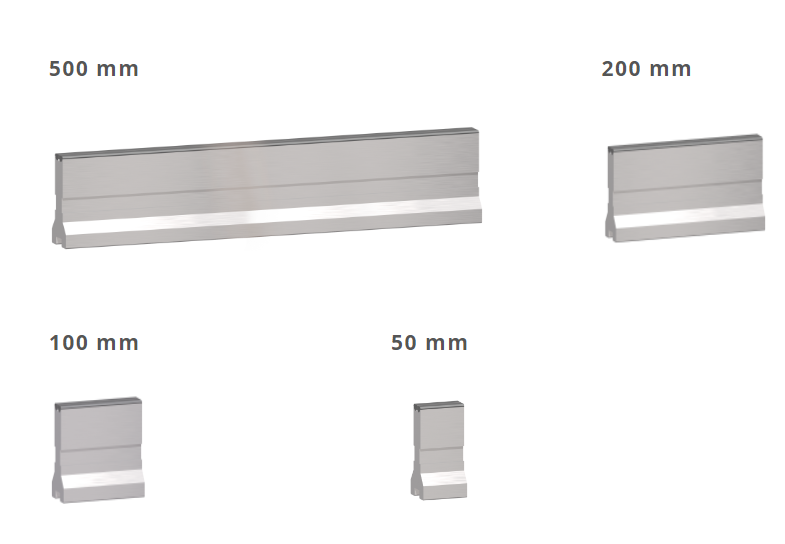

Wingbend Tooling Compatibility
The die is engineered to support wingbend tooling, allowing it to handle larger and more complex bending tasks with ease. It ensures precise bends even with challenging geometries, expanding its usability in various manufacturing environments.
