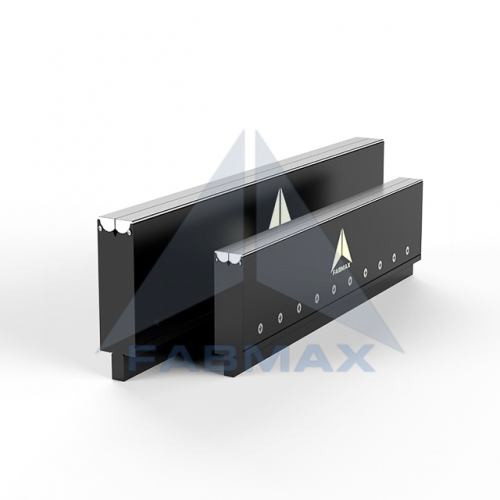

Rolla-V Die

$750.00Excl.tax Excl. Shipping costs

ADD TO CART

TEAMS

Dedicated service teams.

KNOW-HOW

More than 25 years of experience

QUALITY

Outstanding quality

SERVICE

24-hour quick response

Information

Model 1

▼ Castellated inserts
▼ Standard lengths 500mm, 100mm and 440mm segmented
▼ Segmented 440mm lengths includes 200mm, 100mm, 50mm, 30mm, 25mm, 20mm, 15mm
▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 40mm and 45mm

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
100	0.7	40.0	5.0	3.0	3.0
100	1.1	35.0	13.0	3.9	2.6
100	1.5	35.0	27.0	4.2	2.2

Note: Max recommended thickness 1.5 mm (2.0 mm thickness may be possible)

Model 2

▼ Standard lengths 500mm, 100mm and 450mm segmented

▼ Segmented 450mm lengths includes 200mm, 100mm, 40mm, 35mm, 30mm, 25mm, 20mm

▼ Segmented ‘Upgrade Kit’ available – segments at 25mm, 45mm and 50mm

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
150	2.0	59.0	21.0	8.5	6.0
150	3.0	47.0	55.0	9.3	5.0
150	3.2	47.0	65.0	9.3	4.8

Note: Max recommended thickness 3.0 mm (4.0 mm thickness may be possible)

Model 3

▼ Standard lengths 500mm, 100mm and 455mm segmented

▼ Segmented 455mm lengths includes 200mm, 100mm, 60mm, 50mm, 45mm

▼ FMRV.M70.3 Tang sizes 60mm, 13mm, 12.7mm, 12.7mm offset

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
250	2.0	68.0	7.0	22.5	13.9
250	4.0	47.0	34.0	22.5	11.9
250	6.0	50.0	90.0	22.5	9.9

Note: Max recommended thickness 6.0 mm (8.0 mm thickness may be possible)

Model 4

▼ Tang fittings available to suit all manufacturers machines

▼ Standard lengths 500mm and 200mm

▼ Tang sizes 60mm, 13mm, 12.7mm, 12.7mm offset

Maximum load capacity (t/m)	Material thickness (mm)	Minimum bend angle (degrees)	Tonnage required (t)	Minimum outside flange (mm)	Max outside radius
300	6.0	78.0	26.0	56.6	36.4
300	8.0	76.0	50.0	56.6	36.4
300	12.0	73.0	129.0	56.6	36.4

Note: Max recommended thickness 16.0 mm

Air Bending Force
Air bending force

Required press force at 90° air bending, force in ton/mtr.

The charts below give the appropriate tonnage to air bend mild steel.

Bending force for other metals:

Soft aluminium Tons per unit length x 50%

Aluminium alloys heat treated Tons per unit length x 100%

Stainless Tons per unit length x 150%

Iterms
Order：

Minimum order is $20.00.

Special Orders：

All special orders are non-cancelable, non-returnable, and non-refundable.

Payment Terms：

Terms are net 10 days. Catalog prices are subject to change without notice.

Freight：

Orders are shipped F.O.B. from our manufacturing facility. (International Shipments are Incoterms: Ex Works).

Order Cancellation：

In the event an order is cancelled, an additional charge will be assessed to cover the cost of labor and material.

Returned Material：

A handling/restocking fee will be applied to all products returned for credit. A return authorization number and shipping instructions must be obtained in advance before an item can be returned.

Claims：

All claims or product shortages must be made within 30 days of the invoice date.

Description

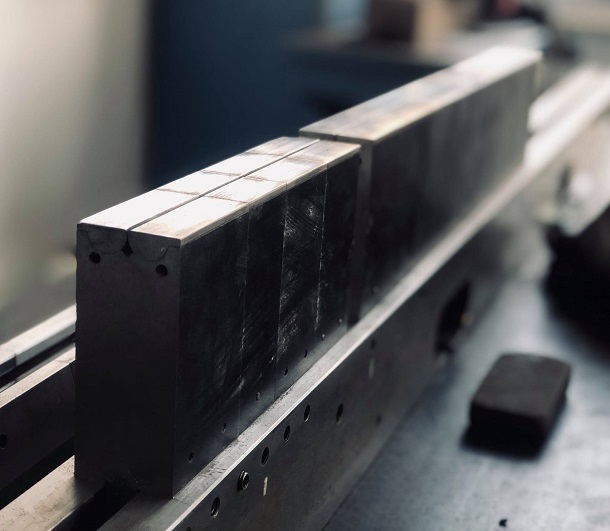

Scratch Prevention

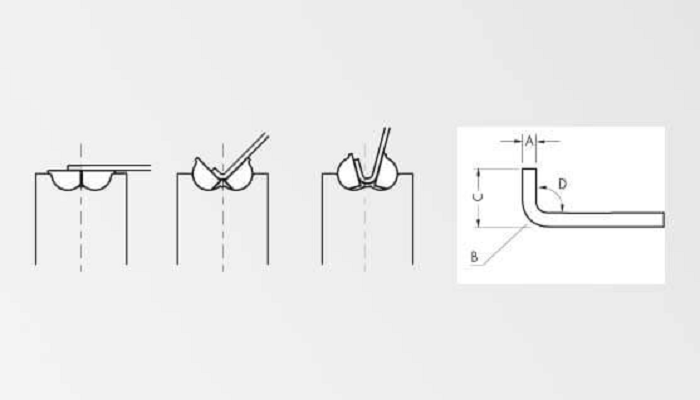

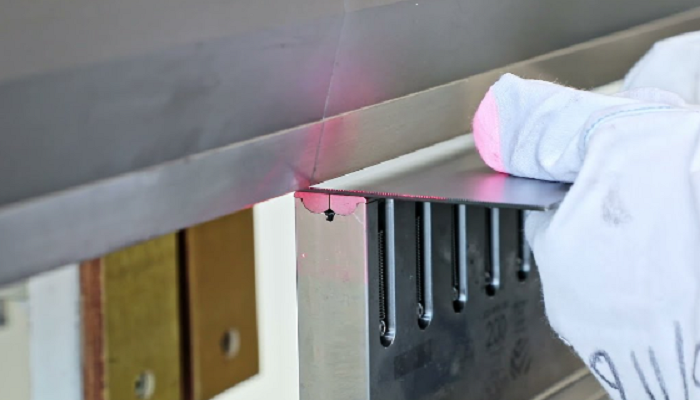

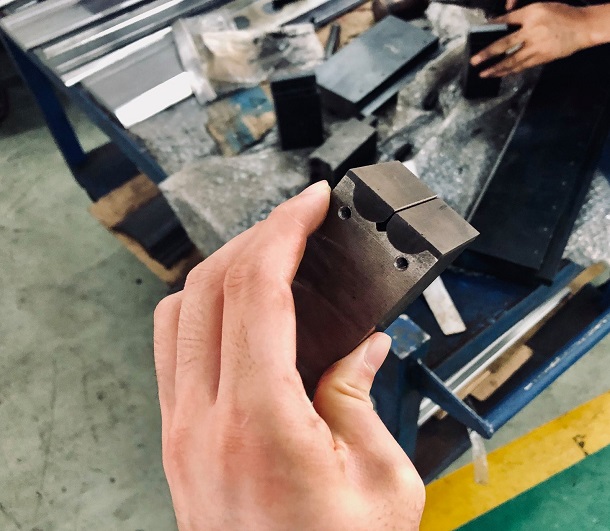

The key advantage of the Rolla-V Die is its incorporation of rotating rollers (mandrels) at the V-die shoulders. This design fundamentally transforms the material-tool interaction from abrasive sliding friction to smooth rolling friction during the bend. This is essential for achieving scratch-free bending on highly sensitive materials like polished stainless steel, pre-painted aluminum, and chrome-plated parts. The rollers significantly reduce surface marring and indentations, minimizing rework costs and ensuring the highest aesthetic quality directly off the press brake.

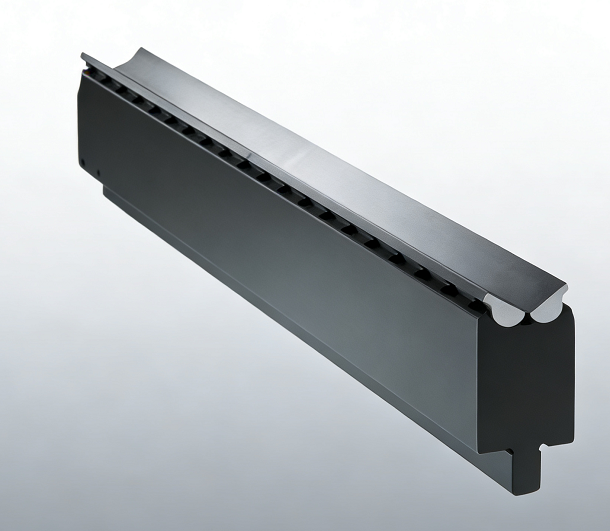

Reducing Tonnage

Another major advantage of the Rolla-V Die is the substantial reduction in the required bending tonnage. By converting sliding friction to rolling friction, the overall force needed to form the bend is lowered, reducing stress on the press brake and tooling. Furthermore, the smooth rolling action helps guide the material, leading to a more consistent and predictable degree of springback. This simplification of angle compensation means faster setup times and higher geometric accuracy in production runs, enhancing overall tooling efficiency.

Soft aluminium	Tons per unit length x 50%
Aluminium alloys heat treated	Tons per unit length x 100%
Stainless	Tons per unit length x 150%
