Press brake tools — also called press brake tooling — are the interchangeable punches (upper tools) and dies (lower tools) that clamp and bend sheet metal into precise angles on a press brake machine. The punch presses down, the sheet metal flexes into the die's V-opening, and the result is a clean, repeatable bend. Everything else on a press brake — the frame, the ram, the CNC backgauge — exists to position and drive these tools accurately.

For fabricators, tooling is the single biggest factor separating an average bend from a precision one. The same press brake, fitted with the wrong tools, can produce marked surfaces, inconsistent angles, or scrapped parts. Fitted with the right tools, it can hold tolerances down to a fraction of a degree across thousands of cycles.

This guide breaks down what press brake tools are, the main categories, how they're classified, and how to choose the right set for your shop.

The Two Core Components of Press Brake Tooling

Every press brake tooling setup starts with two matched parts:

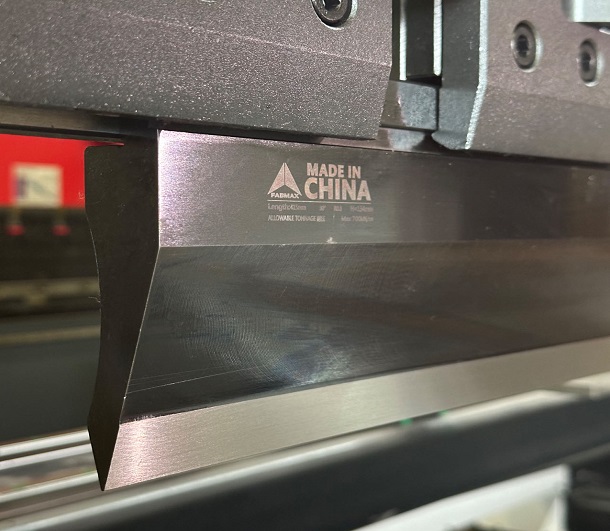

• Punches (upper tools): Mounted in the ram, punches determine the inside bend profile. Common types include Standard Punches (general-purpose 90° bending), Acute Punches (30–60° for tight angles), Gooseneck Punches (deep-profile for return flanges), Sash Punches (thin, offset punches for door-sash work), and Narrow Punches (for tight-clearance boxes).
• Dies (lower tools): Mounted on the bed, dies provide the V-opening the metal bends into. Common types include 1V Dies (single V-opening, 30° or 88°), 2V Dies (two V-openings on one die body for faster changeovers), Multi-V Dies (up to four V-openings for maximum flexibility), and T-style Dies (heavier-duty, for thicker material and higher tonnage).

The V-opening width and material thickness together determine the bend radius, minimum flange length, and required tonnage — which is why matching punch and die geometry correctly is the first rule of press brake tooling.

Beyond Punches and Dies: Specialized Tooling Categories

As parts get more complex, standard V-dies aren't enough. Specialized press brake tools cover the rest:

• Forming tools — Radius Tools, Hinge Tools, Louver Tools, U-Style and Z-Style Tools, and Hemming Tools produce specific profiles (rounded edges, hems, offsets, hinges) in a single hit instead of multiple bends.
• Adjustable dies — allow one die to cover a range of V-openings, reducing the number of tools a shop needs to stock and swap.
• Rolla-V® style tooling — uses a rolling die mechanism instead of a fixed V-groove, producing marking-free bends on pre-finished or coated material.
• Crowning systems / crowning tables — compensate for ram deflection on long bends, keeping the bend angle consistent across the full length of the workpiece — critical on wide sheets and heavy-duty tools applications.
• Clamping systems — the mechanism (hydraulic, pneumatic, or manual wedge/screw) that holds punches securely in the ram; clamping design affects both tool-change speed and repeat accuracy.
• Shear blades — not bending tools per se, but they belong to the same tooling ecosystem, since most sheet metal shops cut before they bend.

OEM-Style vs. Standard Tooling: What "Compatible" Means

Most CNC press brakes on the market use one of a handful of tool-clamping standards — most notably TRUMPF®/WILA®-style and Amada-style systems. Tooling built to these standards ("OEM-compatible" or "aftermarket") fits directly into machines from these brands (and many others) without modification, at a significantly lower cost than tooling bought through the machine builder. This is why "TRUMPF-compatible press brake tools" or "WILA-style punches" are among the most searched tooling terms — shops want machine-brand performance without machine-brand pricing.

How to Choose Press Brake Tools: 4 Questions to Answer First

1. What's your material and thickness range? This determines minimum V-opening, tonnage requirement, and whether you need standard or heavy-duty tools.
2. What's your machine's clamping system? European (TRUMPF/WILA-style), Amada-style, or a proprietary OEM clamp — tooling must match exactly.
3. What bend profiles do you run most? High-volume 90° work favors Standard Punches and 1V/2V Dies; complex enclosures favor forming tools (hem, hinge, U-style) and adjustable dies.
4. How much precision and repeatability do you need? Tight-tolerance or cosmetic parts benefit from crowning tables and marking-free tooling like Rolla-V dies; general fabrication can run on standard segmented tooling.

FAQ: Press Brake Tools

What is the difference between a press brake punch and a press brake die?

The punch is the upper tool mounted in the ram; it presses into the material. The die is the lower tool mounted in the bed; it provides the V-opening the material bends into. Punch and die geometry work together to set the final bend angle and radius.

What material are press brake tools made from?

Most punches and dies are made from tool steel (commonly 42CrMo or similar alloy steels), hardened and precision-ground, sometimes with induction-hardened or nitrided working surfaces for extended wear life under high-cycle production.

Are aftermarket press brake tools compatible with TRUMPF or Amada machines?

Yes. Tooling manufactured to TRUMPF®/WILA®-style or Amada-style clamping specifications will fit the corresponding machines without modification. Always confirm clamping type, working height, and V-opening range against your machine's tooling chart before ordering.

How do I know what size press brake dies I need?

Die selection depends primarily on material thickness: a common rule of thumb is a V-opening of roughly 6–10 times the material thickness, though actual tonnage and radius requirements should be checked against a bending force chart for your specific material and machine.

What is a crowning table used for?

A crowning table compensates for the natural deflection (bowing) that occurs in a press brake's bed and ram under load, especially on long workpieces. It applies a slight counter-curve so the bend angle stays consistent along the entire length of the part.

Fabmax manufactures press brake punches, dies, TRUMPF®/WILA®-style tooling, Rolla-V® tooling, crowning systems, and clamping components from our facility in Maanshan, Anhui, China, with distribution partners in Taiwan, India, and the UK. Browse our full press brake tooling range →
